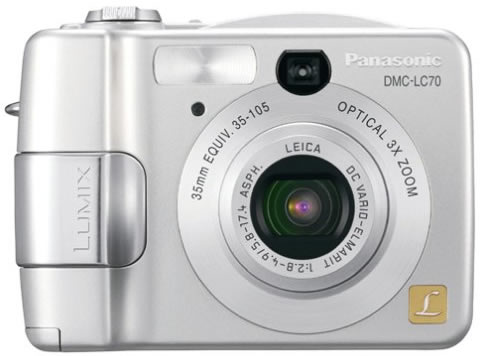

Panasonic Lumix DMC-LC70

User Manual

Sorry, we do not currently have a manual available for this item.
Request a manual | Submit a manual




Leica DC Vario-Elmarit lens:7 elements in 6 groups (3 aspherical lenses)
Camera effective pixels:3.2 Effective Megapixels
CCD (image sensor):1/2.5", 3.34 Total Megapixel CCD, Primary Color Filter
Resolution:2304 x 1728 pixels, 1600 x 1200 pixels, 1280 x 960 pixels, 640 x 480 pixels, 320 x 240 pixels (Motion Image Recording)
Aperture (iris):F2.8 - 4.9
Optical zoom:3x
Digital zoom:3x Variable
Focus distance:f=5.8-17.4mm (35mm equiv
Focusing area:Normal
Focus:Auto Focus System, Normal/Macro (Dial), Spot AF On/Off (Spot Mode)
ISO sensitivity:Auto / 50 / 100 / 200 / 400
White balance:Auto / Daylight / Cloudy / Halogen / White Set
Exposure:Program AE
Exposure compensation:1/3 EV Step, +/- 2 EV
Auto (AE) bracketing:1/3 EV-1 EV Step, 3 Frames
Light metering:Intelligent Multiple / Spot (Spot Mode)
Shooting modes:Simple, normal picture, economy, macro, portrait, landscape, night portrait, and moving image
Shutter speed:8 - 1/2,000 sec
Self timer:10 seconds / 2 seconds
Image quality adjustment:Natural, Standard, Vivid
Color effect mode:Cool, Warm, Black and White
Image modes:Fine/Standard
Image formats:Still Image
Motion image recording with audio:Approximately 10 frames/second at 320 x 240 pixels(maximum recording time deponds upon memory card capacity)
Mega burst imaging:About 4 frames/second with full-resolution image, Max. of 5 frames (Fine Mode) / 8 frames (Standard Mode)
Still image recording with audio:5 seconds
Audio dubbing:Maximum of 10 Seconds
Built-in flash mode:Auto, Auto/Red Eye Redux, Slow Synchro/Red Eye Redux, Forced On/Off
Interface for optional external flash:No
LCD monitor:1.5-inch Diagonal Polycrystalline TFT Color LCD with 114,000 pixels and Adjustable Brightness (+/- 3 steps)
Viewfinder:Optical Viewfinder
Built-in SD card slot:Yes
Memory types:SD Memory Card (16MB Card Included), MultiMediaCard (Optional)
Interface:DC Input, A/V Output, USB
USB port:Yes, version 1.1
Power supply:Batteries (x2)
Included accessories:16MB SD Memory Card, AA Batteries (x2), A/V Cable, USB Cable, Strap, Software CD-ROM
Conversion lens compatibility:No
Auto review:Image Automatically Displayed for Approx. 2 seconds
Delete:Single Page Delete / Multi Page Delete / All Delete
LSI type:Venus Engine LSI
Low pass filter:No
MEGA optical image stabilizer:No
Multi-task image processing:Yes
Dimensions (W x H x D):3.44 by 2.57 by 1.39 inches
Weight:0.35 lbs
What's in the box:Lumix DMC-LC70 digital camera, 16 MB Secure Digital card, 2 AA batteries, USB and A/V cables, and strap. The CD-ROM includes SD Viewer for DSC and Ulead Photo Explorer software.
