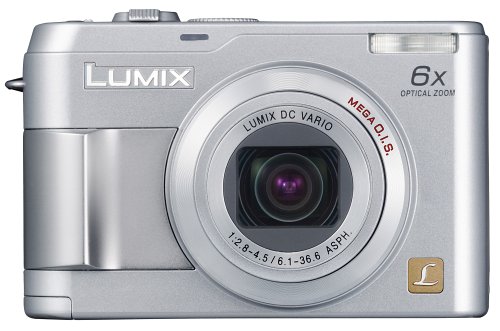

Panasonic Lumix DMC-LZ2

User Manual

Sorry, we do not currently have a manual available for this item.
Request a manual | Submit a manual




Camera effective pixels:5.0 megapixels
Image sensor:1/2.5-inch, 5.36 total megapixel CCD, primary color filter
Focal distance:f=6.1-36.6mm (35mm equivalent
Lens:Lumix DC Vario, 8 elements in 7 groups (2 aspherical lenses, 3 aspherical surfaces)
Optical image stabilizer:MEGA O.I.S. (Mode1/ Mode2)
Focusing area:Normal
AF metering:1 point, 3 points, 5 points, Spot
Focus:Autofocus System, Normal/Macro (Dial)
ISO sensitivity:Auto, ISO 80, 100, 200, 400
White balance:Auto, Daylight, Cloudy, Halogen, White Set
White balance adjustment:150K step, -1500 to +1500 K (except for auto set)
Exposure:Program AE
Exposure compensation:+/1 2 EV (exposure value) in 1/3 EV steps
Backlight compensation:Yes (at simple mode)
Auto (AE) bracketing:+/- 1/3 EV -1 EV step, 3 frames
Light metering:Intelligent Multiple
Scene mode:Simple, Normal Picture, Economy, Macro, SCN1, SCN2 (Portrait, Night Portrait, Sports, Scenery, Night Scenery, Fireworks, Party, Snow), Moving-image, Playback
Shutter speed:8 seconds to 1/2000 second
Self-timer:10 and 2 seconds
Auto review:1 second, 3 seconds, zoom
Review:1x, 4x, 8x
Picture adjustment:Natural, Standard, Vivid
Color effect mode:Cool, Warm, Black and White, Sepia
Recording format:Still Image
Recording image size:2560 x 1920 pixels, 2048 x 1536 pixels, 1600 x 1200 pixels, 1280 x 960 pixels, 640 x 480 pixels, 1920 x 1080 pixels, 320 x 240 pixels (Motion Image)
Image quality:Fine/Standard
Motion image:320 x 240 pixels, 30 frames per second (fps), 10 fps; maximum recording time depends on memory card capacity
Burst shooting mode:Full-resolution image, 3 fps or 2 fps; full-resolution
Unlimited consecutive shooting:Yes
Still image recordsing with audio:5 seconds
Audio dubbing:Maximum 10 seconds
Real-time histogram:Yes
Composition guide lines:Yes
Built-in memory:14MB
Scene Mode help screen:Yes
Auto angle detection:Yes
Economy mode:Yes(Dial)
Built-in flash:Auto, Auto/Red-eye Reduction, Slow Sync/Red-eye Reduction, Forced On/Off; 0.3 to 4.2 meters (wide/ISO Auto), 0.5 to 2.6 meters (telephoto/ISO Auto)
LCD monitor:2.00-inch TFT TRM LCD display (85K pixels); field of view
Playback mode:9-thumbnail display, zoomed playback (16x max.), image rotation, slide show (the frame-to-frame time is adjustable), resizing (selectable number of pixels), trimming, copy, protection, DPOF print setting
OSD language:Japanese, English, German, French, Italian, Spanish, Chinese (traditional)
Recording media:Built-in memory, SD memory card, MultiMediaCard
Interface:DC input, AV output (NTSC/PAL), USB
Direct print:PictBridge
Power:AA Oxyride battery (included), AA Ni-MH rechargeable battery (optional), AA alkaline battery (Optional), AC adaptor (input
Battery life (approximate):235 pictures (CIPA standard) with included AA Oxyride battery, 175 pictures (CIPA standard) with AA alkaline battery
Included software:SD Viewer for DSC, ArcSoft PhotoBase, ArcSoft PhotoImpression, USB driver
Standard accessories:2 AA Oxyride batteries, AV cable, USB connection cable, strap, CD-ROM
Dimensions (W x H x D):100.5 x 63.5 x 32.9 millimeters (3.96 x 2.5 x 1.3 inches)
Weight:Approximately 178 grams (0.39 pounds), 224 grams with battery (0.49 pounds)
