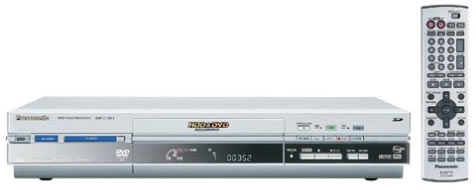

Panasonic DMR-E100HS

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

Panasonic DMR-E100HS

Specifications

Disc capacity:1
Progressive scan:Yes
Playback formats:DVD-Video (NTSC), DVD-R, DVD-RAM, red book CD, CD-R, CD-RW, MP3 CD, and TIFF and JPEG images (media card reader)
Archiving:Yes
Progressive scan:Yes
Closed captioning:Yes
Hard-drive storage capacity:120 GB
Maximum recording time:150 hours
One-touch recording:Yes
Picture-in-picture (PIP):No
Number of programs recorded at once:1
Slow motion:Yes
DV inputs:1 (IEEE 1394/FireWire)
Component-video inputs:None
Component-video outputs:1 (switchable, 480i/480p)
Composite video inputs:3 (RCA)
Composite video outputs:2 (RCA)
Audio inputs:3 RCA (left/right)
Audio outputs:2 RCA(left/right), 1 optical digital-audio output
S-video input:3
S-video output:2
RF inputs:1 (UHF/VHF)
Universal remote included:Yes
Live TV buffering:Yes
Pause live TV:Yes
Recording formats:DVD-R, DVD-RAM
Aspect ratio control:Yes
Front-panel operation:Yes
Multi-angle viewing:Yes (with applicable discs)
Frame advance:Yes
Still/freeze frame:Yes
Multilingual support:Yes (English, Spanish, French)
Parental controls:Yes
Picture zoom:Yes
Recording capability:Yes (to disc or hard disk)
Repeat play:Yes
Reverse-frame step:Yes
Slow motion:Yes
Surround-sound output:Dolby Digital and DTS 5.1-channel passthrough
Simulated surround sound:Yes (Advanced Surround)
THX-certified:No
Length:11.2 inches
Width:16.9 inches
Height:3.125 inches
Weight:8.6 pounds
