Panasonic DMR-E65 K/S

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

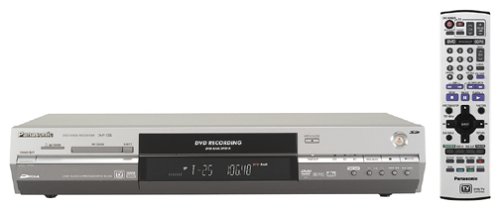

Panasonic DMR-E65S

Specifications

Recordable disc type:DVD-RAM, DVD-R
Time slip functions:Chasing playback; simlutaneous record and play; Time Slip button
Rapid random access, recording and playback:Yes
Built-in hard disk drive:No
Playlist payback:Yes
Direct navigator:Yes
One-touch record and play:Yes
Selectable recording modes:XP/SP/LP/EP/FR
Picture-quality improvement functions:Input TBC, 3D Y/C separation, 3D noise reduction, block noise reduction, mosquito noise reduction
PC Card slot:Compatible with standard PC Cards, SD Memory Cards, CompactFlash Cards, MultiMediaCards, Smart Media Cards, and Memory Sticks
DV input terminal:No
Built-in SD Card slot:Yes
SD Card playable file formats:Still picture: JPEG and TIFF
Dolby Digital® (Dolby AC-3) 2ch audio recording:Yes
Bilingual recording (DVD-RAM only):Yes
MPEG2 encoding with Hybrid VBR (variable bit rate) technology:Yes
Playable disc types:DVD-Video, DVD-Audio (2-channel), DVD-RAM, DVD-R, Video CD, CD, CD-R, CD-RW
MP3 Playback capability:Yes
Progressive scanning:Yes
Video D/A converter:54MHz/10-bit
Picture control:Brightness, color, contrast, gamma
Frame advance (forward and reverse):Yes
Advanced surround (V.S.S.):Yes
Cinema mode:Yes
Dialogue enhancer:Yes
Audio D/A converter:96kHz/24-bit
Power source:AC 120V, 60Hz
Power consumption:28W (3.2W in power save mode)
Horizontal resolution:More than 500 lines
Inputs:3 composite video (RCA), 3 S-video, 3 composite audio L/R (RCA), 1 RF (UHF/VHF)
Remote control:Universal (TV/DVD)
Audio outputs:2 (RCA)
Component video out (Y, Pb, Pr):Switchable (480p/480i)
S-video out:1
Composite video out:2 (RCA)
Model color:Silver
Optical digital output for DTS and Dolby Digital surround sound:Yes
Image viewer/storage (for memory cards):JPEG and TIFF files
Quick view:Yes
Width:3.1 inches
Height:16.9 inches
Weight:8.58 pounds
In the box:Panasonic DMR-E65S DVD recorder, remote control, batteries, and printed instruction manual
