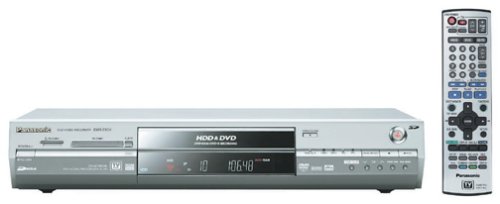

Panasonic DMR-E95HS

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

Panasonic DMR-E95HS

Specifications

Disc capacity:1
Progressive scan:Yes
Playback formats:DVD-Video, DVD-Audio (2 channel), DVD-RAM, DVD-R (recorded on Panasonic units), Video CD, CD, CD-R, CD-RW, MP3, and JPEG/TIFF discs
Built-in hard disk drive:Yes
Hard disk capacity:160 GB (stores up to 284 hours of programming)
Relief recording:Yes
Recording capability:Yes
Recordable disc types:DVD-RAM, DVD-R
Selectable recording modes:XP/SP/LP/EP/FR
Audio recording level control:No
Bilingual recording:Yes (DVD-RAM only)
Playlist playback:Yes
PC Card slot:Yes (compatible with Standard PC Card, SD Memory Card, CompactFlash Card, MultiMediaCard, Smart Media Card, and Memory Stick)
TV Guide Onscreen program guide:Yes (DVD recorder must be connected to a TV antenna and able to receive a terrestrial broadcast that includes EPG data in the transmission)
Aspect ratio:16:9 widescreen, 4:3 standard
Jog/shuttle dial:Time slip roller and button
Dialog enhancer:Yes
Frame advance:Yes
Reverse-frame step:Yes
Slow motion playback:Yes
Cinema mode:Yes
Remote control:Univerasl (TV/DVD)
Picture control:Brightness, color, contrast, gamma
VCR capability:No
Audio inputs:3 audio L/R
Audio outputs:2 L/R, optical digital
Headphone jack:No
Video outputs:1 component video (switchable), 2 S-video, 2 composite video
Video inputs:3 composite video, 3 S-video, 1 RF (UHF/VHF), 1 IEEE 1394 input
Surround-sound output:DTS and Dolby Digital surround sound
Virtual surround sound:Yes
Width:16.94 inches
Height:3.12 inches
Depth:11.47 inches
Weight:9.9 pounds
In the box:DVD video recorder with built-in hard disk drive, universal remote control, DVD-RAM disc, RCA cables, user's manual, warranty information
