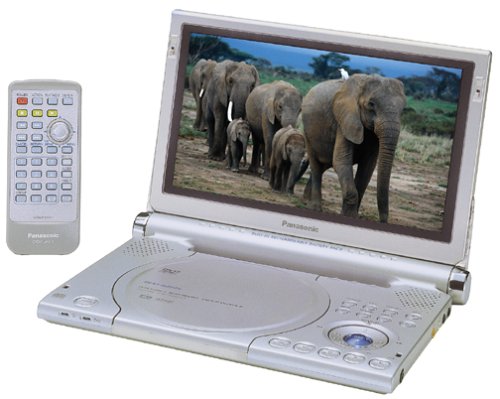

Panasonic DVD-LA95

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!


Panasonic DVD-LA95


In the box:DVD player, AC adapter, audio/video cables, rechargeable battery pack
Screen size:9 inches
Display type:LCD
Aspect ratio:16:9 (4:3 letterboxed selectable)
Text display:No
MP3 playback:Yes
Progressive scan:No
Playback formats:DVD-Video (NTSC), DVD-Audio, DVD-RAM, DVD-R, red book CD, CD-R, CD-RW, MP3 CD
Built-in speaker:Yes (2)
Headphone jack:Yes (.125-inch)
Headphone volume control:Yes
Remote included:No
Tone controls:None
Signal-to-noise ratio:65 dB (video), 144 dB (DVD-Audio, depending on the disc), 97 dB audio CD (depending on the disc)
Frequency response:4 to 20,000 Hz (CD/VCD), 4 to 44,000 Hz (DVD-Video), 4 to 88 kHz (DVD-Audio), all formats: depends on individual media
Batteries:Rechargeable (included)
Battery life:2.5 hours (at lowest power-use settings)
Aspect ratio control:Yes
Dialog enhancer:Yes
Multi-angle viewing:Yes (with applicable discs)
Chapter preview:Yes
Custom bookmarks:Yes
Frame advance:Yes
Still/freeze frame:Yes
Multilingual support:Yes (English, Spanish, French)
Picture zoom:Yes
Reverse-frame step:Yes
Slow motion:Yes
Audio outputs:3 minijack .125-inch stereo analog (left/right), 1 digital (Toslink optical)
Audio inputs:1 minijack .125-inch stereo analog (left/right), switchable with output
Video outputs:2 (minijack .125-inch S-video and minijack .125-inch composite-video)
Video inputs:1 (minijack .125-inch composite-video), switchable with input
Surround-sound output:DVD-Audio, Dolby Digital and DTS 5.1-channel passthrough
Simulated surround sound:Yes (VSS simulated surround)
Length:6.69 inches
Width:9.06 inches
Height:1.09 inches
Weight:2.16 pounds
Variations: DVD-LA95EBS
