Panasonic DVD-LS5

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

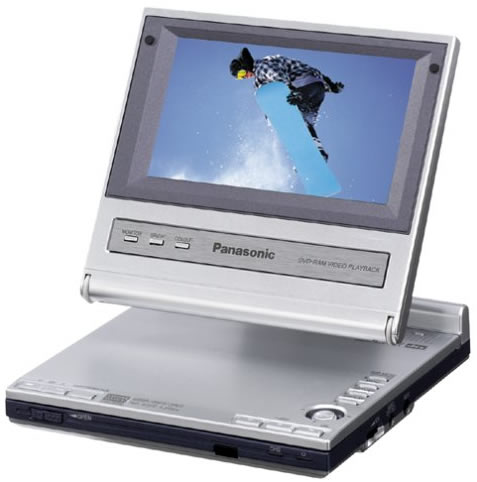

Panasonic DVD-LS5

Specifications

In the box:DVD player, remote control, AC adapter, audio/video cables, rechargeable battery pack, user's manual, warranty information
Color:Silver
Screen size:5 inches
Display type:LCD
Aspect ratio:16:9 (4:3 letterboxed selectable)
MP3 playback:Yes (and WMA)
Progressive scan:No
Playback formats:DVD-Video (NTSC), DVD-Audio (2-channel only), DVD-RAM, DVD-R, video CD, red book CD, CD-R, CD-RW, MP3 CD, WMA CD, HighMAT
Built-in speaker:Yes (2)
Headphone jack:Yes (.125-inch)
Resume:Yes
Headphone volume control:Yes
Remote included:Yes
Tone controls:None
Signal-to-noise ratio:60 dB (video), 115 dB (audio)
Frequency response:4 to 20,000 Hz (CD/VCD), 4 to 44,000 Hz (DVD-Video), 4 to 88 kHz (DVD-Audio), all formats: depends on individual media
Dynamic range:97 dB (CD)
Video DAC:54 MHz, 10-bit
Audio DAC:192 kHz, 24-bit
Horizontal resolution:More than 500 lines
Batteries:Rechargeable (included)
Battery life:2.5 hours (at lowest power-use settings)
Aspect ratio control:Yes
Dialog enhancer:Yes
Multi-angle viewing:Yes (with applicable discs)
Black-level adjustment:No
Cinema Mode:Yes
Chapter preview:Yes
Custom bookmarks:Yes
Frame advance:Yes
Still/freeze frame:Yes
High-speed smooth scan:Yes (5 speeds up to x200)
Multilingual support:Yes (English, Spanish, French)
Picture zoom:Yes
Reverse-frame step:Yes
Slow motion:Yes
Audio outputs:1 minijack .125-inch stereo analog (left/right), 1 digital (Toslink optical)
Audio inputs:0
Video outputs:2 (minijack .125-inch composite-video, S-video)
Video inputs:0
Surround-sound output:DVD-Audio, Dolby Digital, and DTS 5.1-channel passthrough
Simulated surround sound:Yes (VSS simulated surround, Headphone Surround)
Joystick control:Yes
Power source:AC 100-240V, 50/60Hz
Power consumption:10W (using AC adapter)
Energy Star compliant:Yes
Length:5.5 inches
Width:7.3 inches
Height:1 inches
Weight:1.2 pounds (without battery)
