Panasonic DVD-S47 K/S

User Manual

Sorry, we do not currently have a manual available for this item.
Request a manual | Submit a manual

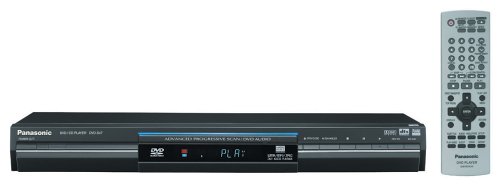

Panasonic DVD-S47K


Disc capacity:1
Region playback:Compatible only with discs coded for Region 1 and for All Regions
Progressive scan:Yes
Switchable 480p/480i:Yes
3:2 pulldown detection:No
Memory card slot:No
Playback formats:DVD-Video (NTSC), DVD-Audio (2-channel only), DVD-RAM, DVD-R, video CD, CD, CD-R, CD-RW, MP3 CD, WMA CD, JPEG image CD
Display:Yes (fluorescent)
Aspect ratio control:Yes
Dialog enhancer:Yes
Front-panel operation:No (remote required for use)
Multi-angle viewing:Yes (with applicable discs)
Black-level adjustment:Yes
Horizontal resolution:More than 500 lines
Picture enhancements:Depth enhancer, 4:4:4 Signal Processing, picture controls (Brightness, Color, Contrast, Gamma Correction, Sharpness)
Video DAC:54 MHz/10-bit
Audio DAC:192 kHz/24-bit
HDCD decoding:No
Video signal-to-noise ratio:More than 65 dB
Audio signal-to-noise ratio:115 dB
Dynamic range (audio):DVD-Video: 100 dB, CD: 98 dB
Chapter preview:Yes
Dynamic-range compression:Yes
Direct Navigator:Yes (when playing back a DVD-RAM disc only, this feature allows you to use the navigation menu on the disc that was created using a Panasonic DVD recorder)
Playlist playback:Yes (when playing back a DVD-RAM disc only, this feature allows you to use the custom playlists on the disc that were created using a Panasonic DVD recorder)
Quick setup guide:Yes
Frame advance:Yes
Still/freeze frame:Yes
Forward/reverse play:Yes
Speeds:Up to 200x normal speed (hi-speed scan)
Multilingual support:Yes (English, Spanish, French)
Remote control:Yes
Parental controls:Yes (ratings lock)
Picture zoom:Variable and auto
Random play:Yes
Recording capability:No
Repeat play:Yes
Resume play:Yes (5 discs)
Sleep timer:Yes
Track programming:32 tracks
Reverse-frame step:Yes
Screen dimmer:Yes
Slow motion:Yes
Instant replay:Yes
Progress indicator:Yes
Text display:Yes (CD Text, media file names)
Audio outputs:1 stereo analog (left/right), 2 digital (1 coaxial, 1 optical)
Headphone jack:No
Video outputs:3 (composite-, component-, and S-video)
Surround-sound output:Dolby Digital and DTS 5.1-channel passthrough
Simulated surround sound:Advanced Surround, Headphone Surround
Power input:AC 120V, 60 Hz
Power consumption:10 watts
HighMAT compatible:Yes (Level 2)
Energy Star compliant:Yes
Width:16.94 inches
Height:2.06 inches
Depth:9.81 inches
Weight:5.3 pounds
In the box:DVD player, remote control, remote batteries, user's manual, stereo analog audio interconnect/composite-video cable, and an AC power cord
