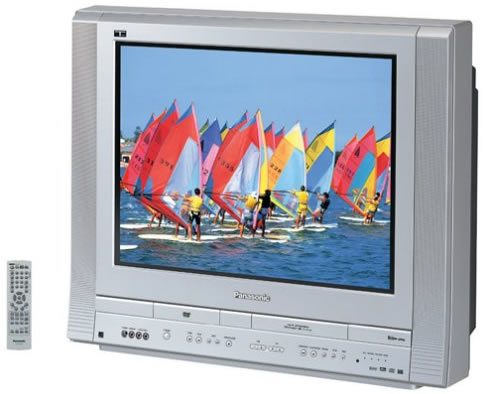

Panasonic PV-DF2704

User Manual

Sorry, we do not currently have a manual available for this item.
Request a manual | Submit a manual


Panasonic PV-DF2704


Screen size:27 inches
TV type:CRT with Pure Flat picture tube
HDTV capable:No
Aspect ratio:4:3
Speaker wattage per channel:5 (at 1 kHz, 8 ohms, with 10 percent THD)
Number of speakers:2
Comb filter:2-line digital
Includes DVD player:Yes
Includes VCR:Yes
Region playback (DVD):Compatible only with discs coded for Region 1 and for All Regions
Progressive scan (DVD):No
Compatible formats:DVD-Video (NTSC), DVD-R, DVD-RAM, CD, CD-R/RW, VHS videocassette
Picture zoom:Yes
Repeat play (DVD):Yes
Random play:Yes (CD)
Resume play (DVD):Yes
Aspect-ratio control (DVD):Yes
Track programming:Yes (CD)
Heads (VCR):4
Stereo (VCR):Yes
Quasi-S-VHS:Yes (plays S-VHS tapes at standard VHS quality)
Commercial skip (VCR):Yes
Index search (VCR):Yes
Zero search:Yes
Input select:Through OSD
Auto clock set:Yes (with 24-hour backup; requires reception of local PBS station with Extended Data Service)
Auto Daylight Savings adjustment:Yes
Auto setup:Yes
High-speed rewind/fast-forward (VCR):Yes
Auto power on:Yes
Auto power off:Yes
Closed captioning:Yes
NTSC tuner:Yes (181 channels)
MTS/SAP reception:Yes
Advance programming:Yes (8 programs/1 month)
Slow motion:Yes (x1/6 - x1/60)
Multilingual menu:Yes (English, Spanish, French)
Record speeds:SP/EP
Search speeds:x9/x27, x13/x43
Remote control:Yes (standard)
Front AV inputs:Yes
Signal type:NTSC
Black-level expansion:No
Auto channel setup:Yes
Last-channel recall:Yes
Parental control:Yes (V-Chip, VCR lock, DVD tray lock)
Picture-in-picture (PIP):No
Audio modes:Normal/Auto/Movie/Music/Speech
Sleep timer:Yes (and TV/video/DVD on-timer)
Surround sound:Simulated
VGA/SVGA input:No
Audio outputs:1 optical digital-audio
Audio inputs:2 stereo analog (left/right) RCA
Video outputs:0
Video inputs:4
Headphone jack:Yes (.125-inch)
Digital-video input:0
Component video:0
Composite video:2
Front AV jacks:Yes
Power supply:AC 120V, 60 Hz
Energy Star compliant:Yes
Width:25.3 inches
Height:29.9 inches
Depth:19.6 inches
Weight:114.5 pounds
