Panasonic TC-14LA1

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

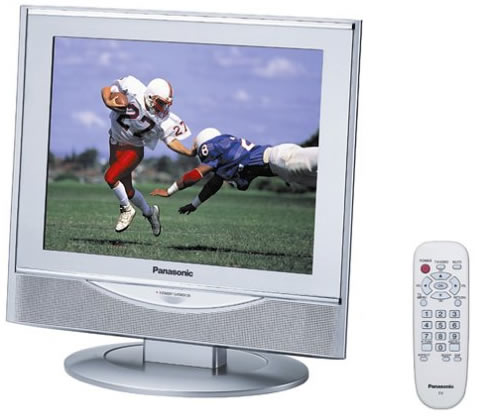

PanasonicTC-14LA1 with remote control

Specifications

Screen size:14 inches
TV type:LCD
HDTV capable:Yes (up to EDTV, 480p)
Aspect ratio:4:3
Number of speakers:2
LCD artificial intelligence:Yes
Comb filter:Digital
Signal type:NTSC
Picture enhancements:New Pixel Controller, Horizontal/Vertical Edge Correction, Active Light Control, Active System Control
Picture modes:Standard, Cinema, Vivid
Picture freeze:No
Auto channel setup:Yes
Input labeling:Yes
Last-channel recall:Yes
Multilingual menu:English/Spanish/French
Parental control:V-Chip
Remote control:Yes
Sleep timer:Yes
Audio tone controls:Bass, treble
Audio balance:Yes
Surround sound:Yes (simulated)
VGA/SVGA input:0
Audio outputs:0
Audio inputs:3 stereo analog (left/right) RCA
Video outputs:0
Video inputs:6
Headphone jack:Yes (.125-inch)
Digital video input:0
Component video:1
Composite video:2
S-video:2
RF:1
Pixels:640 x 480
Contrast ratio:400:1
Brightness:450 cd/m2
Horizontal viewing angle:160 degrees
Response time:16 ms
Tilt angle:15 degrees up, 5 degrees down
Front AV jacks:No
Sound leveler system:Yes (artificial intelligence sound)
Wall mountable:Yes
Power input:AC 120V, 60 Hz
Power consumption: Average use: 48 watts; standby: 0.6 watts
Energy Star compliant:Yes
Width:14.4 inches
Height:13 inches (14.34 inches with stand)
Depth:2.51 inches (8.46 inches with stand)
Weight:9.7 pounds
In the box:TV, detachable table stand, remote control, remote batteries, a tuner cable cover, a user's manual, an AC adapter, an AC power cord, a service-center list, and warranty information
