Panasonic TC-15LT1

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

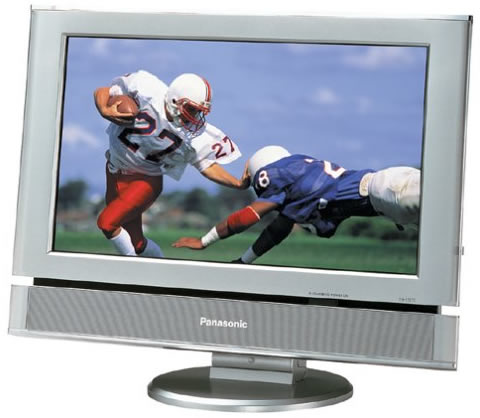

Panasonic TC-15LT1

Specifications

Screen size:15 inches
TV type:LCD
HDTV capable:Yes (EDTV, up to 480p)
Aspect ratio:16:9
3:2 pulldown detection:Yes
Speaker wattage per channel:2 watts x 2, plus 2.5 watts x 1 (with 10 percent THD)
Number of speakers:3 (2-way left/right speakers with 1.57-inch drivers, plus a 2-inch woofer)
Comb filter:3D Y/C digital
Noise reduction:Yes
Signal type:NTSC
Picture enhancements:Active Light Control, Active System Control, Super DSC
Auto channel setup:Yes
Input labeling:Yes
Closed captioning:Yes
Mute:Yes
Parental control:Yes (V-Chip, lock)
Picture-in-picture (PIP):No
Remote control:Yes
SAP:Yes
Sleep timer:Yes
Audio tone controls:Bass, treble
Audio balance:Yes
Surround sound: Simulated
VGA/SVGA input:No
Audio outputs:1 stereo analog (left/right) .125-inch minijack
Audio inputs:2 stereo analog (left/right) RCA
Video outputs:0
Video inputs:4
Headphone jack:Yes (.125-inch)
Digital video input:0
Component video:1 (accessible through supplied adapter cable)
Composite video:1
S-video:1
RF:1
Tuning: VHF: 12, UHF: 56, cable: 125
Pixels:854 x 480
Contrast ratio:400:1
Brightness:400 cd/m2
Horizontal viewing angle:120 degrees
Vertical viewing angle:100 degrees
Front A/V jacks:No
Sound leveler system:Yes (Artificial Intelligence Sound)
Wall mountable:Yes
Power supply:AC 90 to 254V, 50/60 Hz
Power consumption:52 watts (2 watts standby)
Operating conditions:41 to 95 degrees F, 5 to 90 percent humidity (RF, noncondensing)
Width:16.26 inches
Height:12.99 inches
Depth: Without stand: 2.44 inches; with stand: 7.09 inches
Weight:12.35 pounds
In the box:TV, remote control, remote battery, F-type coaxial antenna adapter, AC adapter, AC cord, D-Y/Pa/Pr conversion cable, a user's manual, a warranty card, and a service-center list
