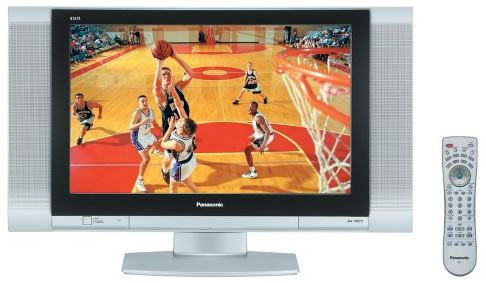

Panasonic TC-32LX20

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!


Panasonic TC-32LX20


Screen size:32 inches (diagonal)
TV type:Flat panel LCD TV
HDTV capable:Yes
Aspect ratio:16:9 widescreen
Aspect control:Normal, zoom, full, just
Resolution:1280 x 768 (1,049,088 pixels)
Contrast ratio:Up to 500:1
Horizontal viewing angle:170 degrees
Moving picture response speed:16 ms
Brightness:450 cd/m2
Speaker wattage per channel:20 watts per channel
Number of speakers:4
Comb filter:Motion-adaptive 3D-Y/C
Closed captioning:Yes
Multilingual menu:Yes (English, French, Spanish)
Parental control:Yes (V-chip program lockout)
Remote control:Yes (universal remote)
Sleep timer:Yes
Surround sound:Yes
Audio inputs:3 audio line in (rear)
Audio outputs:1 audio line out (rear)
Video inputs:2 component video, 2 composite video, 2 S-video, 1 RF
HDMI interface:1 (rear)
Headphone jack:Yes
Component video:2 (rear)
Composite video:2 (front and rear)
S-video:2 (front and rear)
RF input:1 (rear)
Video noise reduction:Yes
Video input labeling:Yes
Video input picture memory:Yes
Width:39.4 inches
Height:22.0 inches
Depth:5.4 inches
Weight:60.1 pounds
In the box:Widescreen flat panel LCD, remote control, user's manual, warranty information
