Panasonic TH-42PD25U/P

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

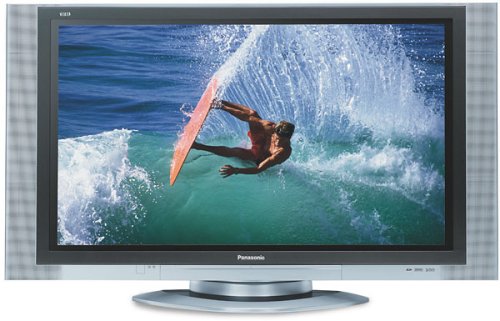

Panasonic TH-42PD25U/P

Specifications

Screen size:42 inches
TV type:Gas-plasma
HDTV capable:Yes (480p, EDTV resolution)
Aspect ratio:16:9
3:2 pulldown detection:No
Speaker wattage per channel:8 watts x 2 (into 6 ohms, from 105 to 20,000 Hz, with 10 percent THD)
Number of speakers:2
Ports:SD Card and CableCARD
JPEG photo viewer:Yes
Noise reduction:Yes
Signal type:NTSC, ATSC (480p)
Black-level expansion:Yes
Picture enhancements:New Real Black Drive System, Gamma Enhancement System, Mach Band Effect Enhancer
Picture modes:Video-input picture memory
Auto channel setup:Yes
Input labeling:Yes
Direct input selection:Yes
Closed captioning:Yes
Mute:Yes
Last-channel recall:Yes
Picture freeze:Yes
Multilingual menu:English only (disc menus may be different)
Parental control:Yes (V-Chip)
Picture-in-picture (PIP):Yes (2-tuner, scalable, split-screen with channel search)
Remote control:Yes (EUR7627Z10)
SAP:Yes
Sleep timer:Yes
Audio tone controls:Bass, treble
Audio balance:Yes
Surround sound:Yes (BBE ViVA HD3D Sound, simulated from 2-channel programs)
VGA/SVGA input:1 (front-panel)
Audio outputs:1 stereo analog (left/right) RCA, 1 optical digital-audio output
Audio inputs:5 stereo analog (left/right) RCA
Video outputs:1 (composite-video)
Video inputs:10
Headphone jack:Yes (.125-inch, front-panel)
Digital video input:1 (HDMI)
Component video:2
Composite video:3
S-video:3
RF:0
Pixels:852 x 480
Contrast ratio:Up to 4,000:1
Brightness gradations:1536
Dot pitch:1.08 x 1.08 mm
Colors:Over 1 billion (1,070 million)
Front AV jacks:Yes
Sound leveler system:Yes
Wall mountable:Yes
Power supply:AC 120V, 50/60 Hz
Power consumption:395 watts (standby: 18 watts)
Energy Star compliant:No
Environmental:0 to 40 degrees C; 20 to 80 percent humidity (non-condensing)
Approvals:UL6500/C-UL
Width:46.1 inches
Height:25.9 inches
Depth:3.9 inches
Weight:79.4 pounds
In the box:TV, remote control, remote batteries (2 AA), a pedestal base, an AC power cord, F-type coaxial antenna adapters, ferrite cores, 2 clampers, a warranty card, a customer card, and a service-center list
