Panasonic TH-50PX25U/P

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

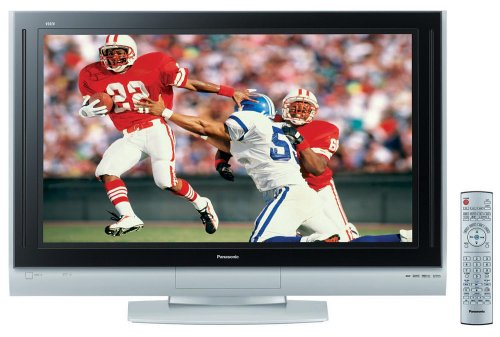

Panasonic TH-50PX25U/P


Screen size:50 inches
TV type:Gas-plasma
HDTV capable:Yes (720p from PCs, 1080i from most compatible sources)
Aspect ratio:16:9
3:2 pulldown detection:No
Speaker wattage per channel:5 watts per channel x 2, 8 wpc x 2 (26 watts total power)
Number of speakers:2 (ported, biamplified, with 5 drivers each)
Ports:SD Card, PCMCIA card slot, and CableCARD
Noise reduction:Yes
Signal type:NTSC, ATSC (480p, 720p, and 1080i; 720p signals can be accepted only from PC input)
Black-level expansion:Yes
Picture enhancements:New Real Black Drive System, Gamma Enhancement System, Mach Band Effect Enhancer
Picture modes:Video-input picture memory
Input labeling:Yes
Closed captioning:Yes
Multilingual menu:English only (disc menus may be different)
Parental control:Yes (V-Chip)
Picture-in-picture (PIP):Yes (2-tuner, scalable, split-screen with channel search)
Remote control:Yes
Sleep timer:Yes
Surround sound:Yes (BBE ViVA HD3D Sound, simulated from 2-channel programs)
VGA/SVGA input:1 (front-panel)
Audio outputs:1 stereo analog (left/right) RCA
Audio inputs:5 stereo analog (left/right) RCA
Video outputs:1 (composite-video)
Video inputs:10
Headphone jack:Yes (.125-inch, front-panel)
Digital video input:1 (HDMI)
Component video:2
Composite video:3
Pixels:1,366 x 768
Contrast ratio:3,000:1
Brightness gradations:1,536
Dot pitch:0.81 x 0.81 mm
Colors:Over 1 billion (1,070 million)
Front AV jacks:Yes
Sound leveler system:Yes
Wall mountable:Yes
Power supply:AC 120V, 50/60 Hz
Power consumption:545 watts (standby: 18 watts)
Energy Star compliant:No
Environmental:0 to 40 degrees C; 20 to 80 percent humidity (non-condensing)
Width:52.3 inches
Height:34.3 inches
Depth:5.5 inches
Weight:125.7 pounds
In the box:TV, remote control, remote batteries (2 AA), a pedestal base, an AC power cord, F-type coaxial antenna adapters, ferrite cores, 2 clampers, a warranty card, a customer card, and a service-center list
