Philips 44PL9523

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

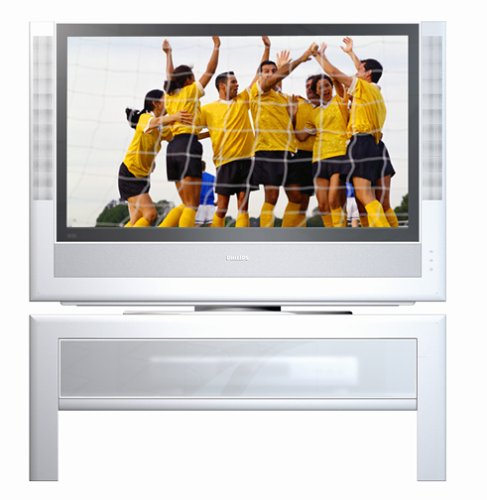

Philips 44PL9523


Screen size: 44 inches
TV type: Liquid Crystal on Silicon (LCoS)
HDTV capable: Yes
Aspect ratio: 16:9
Speaker wattage per channel: 20 watts RMS (with 2 percent THD, from 20 to 15,000 Hz, +1/-3 dB)
Number of speakers: 2 (2-way speakers with one 2-inch and one 5-inch driver each)
Comb filter: 3D Y/C digital
Horizontal resolution: 720 lines
Peak brightness: 450 cd/m2
Pixels: 1,280 x 720p
Contrast ratio: Greater than 400:1
Horizontal viewing angle: 160 degrees
Vertical viewing angle: 120 degrees
Line doubling: Yes
Signal type: NTSC, decoded ATSC (480p, 720p, 1080i scaled for 720p viewing); PC inputs up to 1,280 x 1,024
Protective screen guard: Yes (with antiglare coating)
Picture modes: Widescreen Plus; 8 widescreen modes: Automatic, Super Zoom, Panoramic, 4:3, Movie Expand 14:9, Movie Expand 16:9, 16:9 Subtitle, and Wide Screen; AutoPicture control: Soft, Natural, Rich, Multimedia, Personal
Sound modes: AutoSound control: Movie, Speech, Music, Personal
Remote control: Universal (RC2043/01B)
Picture-in-picture (PIP): Yes (double-window, dual-tuner)
Audio tone controls: Bass, treble; 5-band Audio Equalizer Controls (with adjustments at 120 Hz, 500 Hz, 1.5 kHz, 5 kHz, and 10 kHz)
VGA/SVGA input: 1 (D-Sub 15-pin)
Audio outputs: 1 stereo analog (left/right) RCA, 1 monaural RCA subwoofer output
Audio inputs: 7 stereo analog (left/right) RCA, 1 monaural center-channel input (speaker-level, clip-type terminal)
Video outputs: 1 (composite-video)
Video inputs: 12
Headphone jack: Yes (side panel, .125-inch with independent level control)
Digital video input: 1 (DVI-HDTV)
Component video: 3 (2 HD, 1 SD)
Composite video: 3
S-video: 3
RF: 1
Side AV jacks: Yes
Front AV jacks: No
Power supply: AC 110V +/- 10 percent
Power consumption: Normal operation: 233 watts; standby: less than 1 watt
UPC: 0 37849 93418 0
Dimensions (WxHxD): 46.7 inches x 31.7 inches x 14.6 inches
Weight: 73.1 pounds
