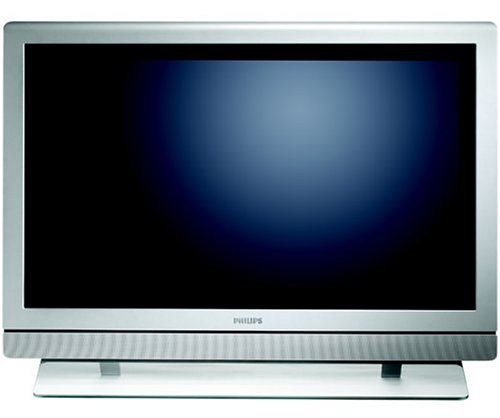

Philips 50PF9956

User Manual

Sorry, we do not currently have a manual available for this item.
Request a manual | Submit a manual

Features

Philips 50PF9956

Specifications

Screen size: 50 inches
TV type: Gas-plasma
HDTV capable: Yes
Aspect ratio: 16:9
3:2 pulldown detection: No
Speaker wattage per channel: 15 watts RMS
Number of speakers: 2 (2-way each, with 1 woofer with wOOx and 1 dome tweeter)
Flash-memory port: No
Includes radio: No
Comb filter: 3D
Noise reduction: Yes
Signal type: NTSC, decoded ATSC (480p, 576i/p, 720p, 1080i, 1152i scaled for 768p viewing)
Black-level expansion: No
Screen protection: Anti-reflex, coated screen
Picture enhancements: Active Control Plus+ with light sensor, Digital CrystalClear, anti-aging circuit, Digital Natural Motion, jagged-line suppression
Picture modes: 6 Smart Picture settings, 6 widescreen modes
Sound modes: 4 Smart Sound settings, center-channel mode
Picture freeze: Yes
Onscreen display: Compass graphical user interface
Parental control: V-Chip, Smart Lock
Picture-in-picture (PIP): 2-tuner, split-screen
Remote control: RC4306 universal remote
Sleep timer: 240 minutes (plus on/event timer)
Surround sound: Dolby Virtual Surround
VGA/SVGA input: 0
Audio outputs: 2 stereo analog (left/right) RCA, 1 monaural RCA subwoofer output
Audio inputs: 4 stereo analog (left/right) RCA, 1 monaural RCA center-channel input
Video outputs: 0
Video inputs: 4 sets of AV inputs (10 total video inputs)
Headphone jack: Yes (.125-inch)
Digital video input: 1 (HDMI)
Component video: 2 (1 with V/H sync inputs for use with PC)
Composite video: 3
S-video: 3
RF: 1
Monitor: No (includes 2 NTSC tuners)
Pixels: 1,366 x 768
Contrast ratio: 3,000:1
Brightness: 1,000 cd/m2
Horizontal viewing angle: 160 degrees
Vertical viewing angle: 160 degrees
Front AV jacks: No
Side AV jacks: Yes
Wall mountable: Yes (with supplied brackets)
Power supply: AC 110 to 120V, 60 Hz
Power consumption: 600 watts (normal operation), less than 2 watts (standby)
UPC: 0 37849 94593 3
Width: 50.2 inches
Height: 34.7 inches
Depth: 3.9 inches
Weight: 127.9 pounds
In the box: TV, remote control, remote batteries, HDMI to DVI conversion cable, VESA-standard wall-mounting brackets, a designer table-top stand, a user's manual, and a registration card
