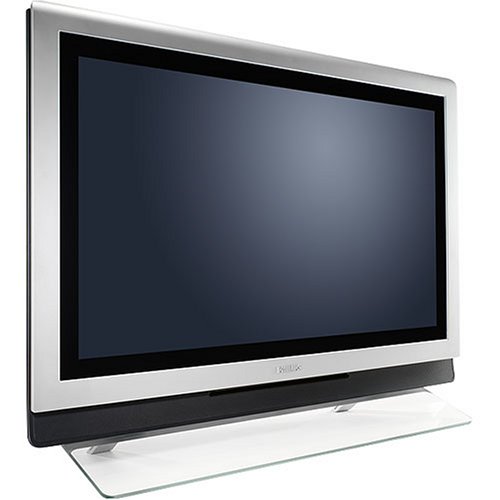

Philips 50PF9966

User Manual

Sorry, we do not currently have a manual available for this item.
Request a manual | Submit a manual


Philips 50PF9966


Screen size: 50 inches
TV type: Gas plasma
HDTV capable: Yes
Aspect ratio: 16:9
3:2 pulldown: No
Memory card slot: No
Speaker wattage per channel: 15 watts RMS
Number of speakers: 2 (2-way with wOOx construction woofers and dome tweeters)
Includes radio: No
Comb filter: Yes (3D digital)
Line doubling: No
Noise reduction: Yes
Signal type: NTSC, decoded ATSC
Multimedia modes: 8 (including 2 Macintosh modes)
Black-level expansion: Yes (Dynamic Contrast, part of Digital Crystal Clear III)
Protective screen cover: Yes (anti-reflection coating)
Picture enhancements: Pixel Plus, Digital Natural Motion, Digital Crystal Clear, Ambilight, Active Control Plus, anti-aging circuit, motion-adaptive deinterlacing
Picture modes: 6 widescreen modes
Sound modes: 4 SmartSound control (settings for movie, speech music, personal)
Auto channel setup: Yes (100 preset channels)
Closed captioning: Yes (with text)
Mute: Yes
Last-channel recall: Yes
Multilingual menu: Yes (English, Spanish, French)
Parental control: Yes (child lock)
Picture-in-picture (PIP): Yes (2-tuner, split-screen picture-in-picture with 3- and 8-PIP mosaic options)
Picture freeze: Yes

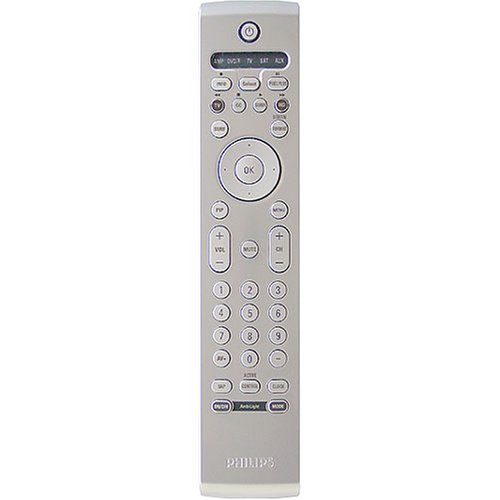

Remote control: Yes (RC 4307 universal remote with DVD control)
Sleep timer: Yes (up to 240 minutes)
Audio tone controls: Dynamic Bass Enhancement
Surround sound: Virtual Dolby Surround (simulated surround sound)
VGA/SVGA input: 0
Audio outputs: 2 stereo analog (left/right) RCA, 1 monaural subwoofer output
Audio inputs: 4 stereo analog (left/right) RCA, 1 monaural RCA center-channel input
Video outputs: 1 (composite-video)
Video inputs: 9
Headphone jack: Yes (.125-inch)
Digital video input: 1 (HDMI)
Component video: 2 (1 with RGB+VH sync terminals)
Composite video: 3
S-video: 3
RF: 0
Data port: 0
Monitor: No (includes built-in NTSC tuner)
Pixels: 1,366 x 768 (x3) pixels
Contrast ratio: 3,000:1
Brightness: 1,000 cd/m3 (nits)
Horizontal viewing angle: 160 degrees
Vertical viewing angle: 160 degrees
Lamp (ambilight lamp): 60,000 hours
Front AV jacks: No
Side AV jacks: Yes
Wall mountable: Yes (with supplied mounting hardware)
Power supply: AC 110 to 120V, 60 Hz
Power consumption: Normal operation 600 watts, standby less than 2 watts
UPC: 0 37849 94594 0
Width: 50.2 inches
Height: 34.7 inches
Depth: 3.9 inches
Weight: 127.9 pounds
In the box: TV, stand, remote control, remote batteries, an HDMI-to-DVI conversion cable, wall-mount brackets, and a user's manual
