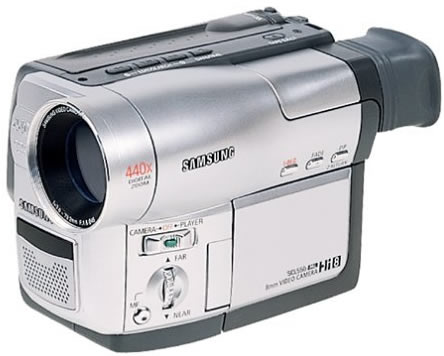

Samsung SC-L550

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

Samsung SC-L550

Specifications

Video format:Hi8
Progressive scan CCD:No
Audio:AFM Hi-Fi
Maximum CCD resolution:410,000
CCD size:0.25 inches
Eyepiece viewfinder:Black and white
LCD screen size:2.5 inches
LCD swivel:Yes
Aperture:f/3.6
Filter diameter:46mm
Optical zoom:22x
Digital zoom:20x
Programmed exposure modes:Auto, sports, portrait, spotlight, high speed shutter, and sand and snow
Hot shoe for external light:No
Image stabilization:Yes
Infrared capability:No
Remote included:Yes
Digital camera capability:No
Included still memory:N/A
Preset titles:Yes
Custom titling:Yes
Special effects:12 effects including mosaic, mirror, negative, and emboss
Motion sensor:No
Audio sensor:No
IEEE1394 output:No
Connections:A/V output
S-Video output:Yes
Battery type:Lithium-ion
Included in box:Lithium ion battery pack, AC adapter, audio/video cable, S-video cable, remote control, battery for remote, shoulder strap
Width:7.0 inches
Height:4.12 inches
Depth:4.0 inches
Weight:1.75 lbs
