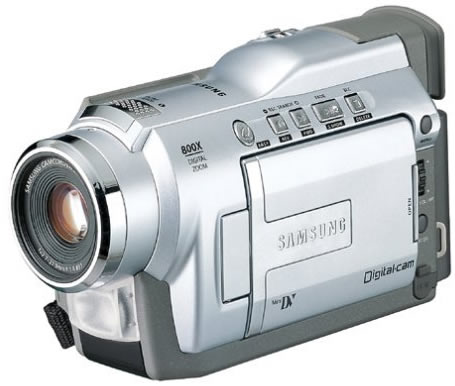

Samsung SC-D23

User Manual

Sorry, we do not currently have a manual available for this item.
Request a manual | Submit a manual

Features

Samsung SCD23

Specifications

Format:Mini-DV
Signal Format:NTSC
Dimension(WxHxD):58.5x90x156
Weight(Net):500g
Power Consumption with LCD on / EVF on:4.7W / 3.7W
LCD Monitor Size:2.5 inches
LCD Monitor Pixel:112,000
LCD Monitor Bright / Color Adjust:Yes
LCD Monitor Rotation Angle:90 - 270 degrees
LCD Monitor Mirror:Yes
Viewfinder Display Device:Black and white
Viewfinder Size:0.24"
Viewfinder Pixel:77,000
Viewfinder Diopter Adjust:Yes
Built-in Light:Yes
Optical Zoom:10x
Digital Zoom (Selectable):100x/200x/400x/800x
Focal Length (f):2.7 - 27mm
F.No(Wide/Tele):1.4 / 1.8
Zooming Speed:Variable 4 Step
Filter Diameter:37
0 Lux Recording:Nite Pix
Macro:Wide Macro
CCD Size:1 / 6"
CCD Pixel:680,000
Features:Digital image stabilizer, Auto Focus / Manual Focus, Program AE(Auto, Sports, Portrait, Spotlight, Sand / snow, High Speed Shutter), Power Nite Pix, Auto Shutter Speed, Auto White Balance, Manual White Balance(A/H/I/O), Built-in Digital Camera, Photo Mode, Back Light compensation, Fade In/Out
Low Light sensitivity (Visible):3 lux
Manual Iris Set:30 step
Slow Shutter:1/8, 1/15, 1/30
Manual Shutter:1/60-1/10000, 8 Step
Digital Special Effects:Art, Mosaic, Sepia, Nega, Mirror, Blackand White, Emboss, Cinema, Make-up (R/G/B/Y)
Heads:2
Diameter of Drum:21.7mm
Features:Recording Speed (SP/LP), Playback Speed (SP/LP), Auto Tracking, PB DSE (Mosaic / Mirror), PB Zoom
Audio System:12/16 bit PCM
Speaker:0.3W
Volume Adjust:Yes
Built-in Microphone:Stereo
Wind Filter:Yes
Audio Dub(SP):12 bit
Memory Media:M.S Slot
Motion Picture Format / Resolution:MPEG4 / QVGA 10fps
Still Image Format / Resolution:JPEG / VGA
Image Quality Mode:Super Fine/Fine/Normal
Multi Display:6 scene
Continuous Shot:Yes
PC Interface:IEEE1394(In / Out), OS for IEEE1394(Win98~XP / Mac), USB Format(USB1.1), OS for USB(Win98~XP / Mac), Bundle S/W1 (USB Driver-DVC Media), Volume(P3/450MHz,64MB,4GB)
Motion Picture Streaming Format / Resolution:MPEG4 / QVGA 10fps
Still Image Format / Resolution:JPEG / VGA
PC Camera / E-mail:Yes
External Storage:Yes
Accessory:AC Adapter/charger, AC Cord, Battery Pack, Hand Grip, A/V Cable, Shoulder Strap, USB Cable, Software CD, Instruction Book
