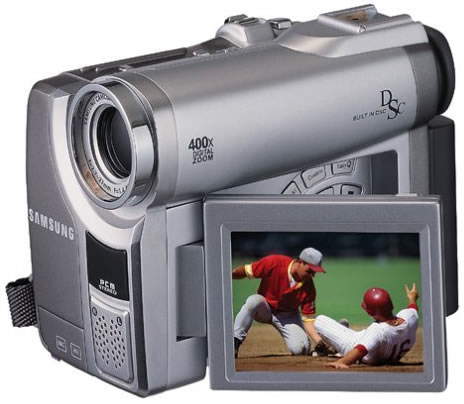

Samsung SC-D33

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

Samsung SC-D33

Specifications

Format:Mini-DV
Signal Format:NTSC
Dimension(WxHxD):68x89x111
Weight(Net):440g
Power Consumption LCD on / EVF on:4.7W / 3.7W
LCD Monitor Size:2.5"
LCD Monitor Pixel:123K
LCD Monitor Bright / Color Adjust:Yes
LCD Monitor Rotation Angle:90-270 degrees
LCD Monitor Mirror:Yes
Viewfinder Display Device:BW
Viewfinder Size:0.24"
Viewfinder Pixel:77K
Viewfinder Diopter Adjust:Yes
Accessory Shoe:Yes
Optical Zoom Ratio:10x
Digital Zoom Ratio (Selectable):100x/200x/400x/800
Focal Length (f):2.7 - 27mm
F.No(Wide/Tele):1.4 / 1.8
Zooming Speed:Variable 4 Step
Filter Diameter:37
0 Lux Recording:Nite Pix
Macro:Wide Mac
CCD Size:1 / 6"
CCD Pixel:680K
Image Stabilizer:DIS
Auto Focus/Manual Focus:Yes
Program AE:Auto, Sports, Portrait, Spotlight, Sand / snow, High Speed Shutter
Manual Shutter:1/60~1/10000, 8 Step
Slow Shutter:1/8, 1/15, 1/30
Power Nite Pix:Yes
Auto Shutter Speed:Yes
Auto White Balance:Yes
Manual White Balance(A/H/I/O):Yes
Manual Iris Set:30 step
Photo Mode:Yes
Built-in Digital Camera:Yes
Digital Special Effects:Art, Mosaic, Sepia, Nega, Mirror, B/W, Emboss, Cinema, Make-up (R/G/B/Y)
Back Light compensation:Yes
Fade In/Out:Yes
Low Light sensitivity (Visible):3 Lux
Heads:2
Diameter of Drum:21.7mm
Recording Speed (Selectable):SP/LP
Playback Speed (Automatic):SP/LP
Auto Tracking:Yes
PB DSE(Mosaic/Mirror):Yes
PB Zoom:Yes
Audio System:12/16 bit PCM
Speaker (0.3W):Yes
Volume Adjust:Yes
Built-in Microphone:Stereo
Wind Filter:Yes
Audio Dub(SP):12bit
Memory Media:M.S Slot
Motion Picture Format / Resolution:MPEG4 / QVGA 10fps
Still Image Format / Resolution:JPEG / VGA
Image Quality Mode:Super Fine/Fine/Normal
Multi Display:6 scene
Continuous Shot:Yes
PC Interface:IEEE1394(in/out), OS for IEEE1394(Win98, XP/Mac), USB Format(Version 1.1), OS for USB(Win98SE/Mac OS 9.2), Bundle S/W1 (USB Driver-DVC Media), Recommended PC System(P3/450MHz,64MB,4GB)
USB Streaming:Motion Picture Streaming Format / Resolution(MPEG4 / QVGA 10fps), Still Image Format / Resolution(JPEG / VGA), PC Camera / E-mail, External Storage
Accessory:AC Adapter/Charger(AA-E7), AC Cord, Battery Pack(SB-L110), Hand Grip(Installed), Remote Control, Lithium Cell (Clock/emocon), A/V Cable(Multi Cable), Shoulder Strap, S-Video Cable(Multi Cable), Carrying Case / USB Cable, Software CD, Instruction Book
