Samsung SC-D86

User Manual

Sorry, we do not currently have a manual available for this item.
Request a manual | Submit a manual

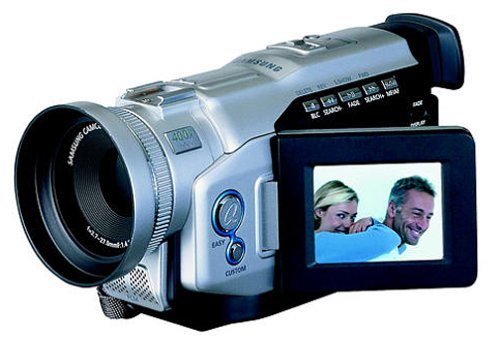

Samsung SC-D86


Video signal:NTSC
Video recording system:2 rotary heads, Helical scanning system
Audio recording system:Rotary heads, PCM system
Usable cassette:Digital video tape (6.35mm width): Mini DV cassette
Tape speed:SP: approx. 18.81mm/s, LP: approx. 12.56mm/s
Tape recording time:SP: 60 minutes (when using DVM 60), LP: 90 minutes (when using DVM 60)
FF/REW time:Approx. 180 sec. (using DVM60 tape)
Image device:CCD (Charge Coupled Device)
Lens:F1.4 10x(Optical), 400x(Digital) Electronic zoom lens
Filter diameter:37
LCD monitor:2.5 inches
LCD monitor Method:TFT LCD
Viewfinder:SCD87: 0.44" colour LCD, SCD86: 0.24" B/W LCD
Video output:1Vp-p
S-video output:Y: 1Vp-p, C: 0.286Vp-p
Audio output:-7.5dBs
DV input/output:4pin special in/out connector
USB output:Mini-B type connector
External mic:3.5 stereo
Power source:DC 8.4V, Lithium Ion Battery Pack 7.4V
Power source type:Lithium Ion Battery Pack, Power supply (100V~240V) 50/60Hz
Power consumption(Recording):5.2W(LCD), 3.9W(EVF)
Operating temperature:0 - 40 degrees C (32 F - 104 degrees F)
Storage temperature:-20 C - 60 degrees C (-4 F - 140 degrees F)
External dimension:Length 7 inches(178mm), Height 3.54 inches(90mm), Width 2.48 inches(63mm)
Weight:1.21 pounds(550g) (Except for Lithium Ion Battery Pack and tape)
Built-in MIC:Omni-directional stereo condenser microphone
Remote control:Indoors: greater than 49ft(15m) (straight line), Outdoors: greater than 16.4ft(5m) (straight line)
