Samsung Tantus HCN529W

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

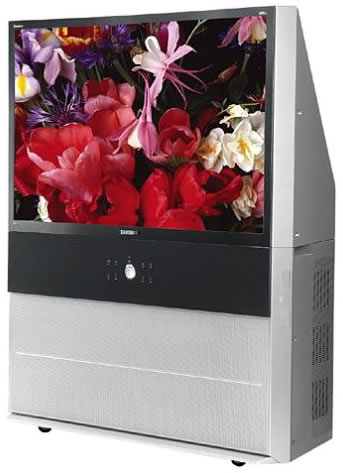

Samsung Tantus HCN529W

Specifications

Screen size:52 inches
TV type:Rear-projection
HDTV capable:Yes
Aspect ratio:16:9 (with 5 preset aspect-ratio modes)
Speaker wattage per channel:15
Number of speakers:2
Comb filter:Yes (3D Y/C digital)
Display system:Three 7-inch HD Fine Resolution CRTs with Fine Focus lenses
First-surface mirror:Yes
Line doubling:Yes (all-format conversion to 720p with Progressive Cinema Scan)
3:2 pulldown:Yes (in Film mode)
Signal type:NTSC, ATSC (no DTV receiver included)
Picture modes:Standard, movie, or custom
Sound modes:Standard, movie, music, speech, or custom
Picture enhancements:HD Fine Pitch Screen, HD Fine Focus CRT lenses, RealFlect System Pro
Multilingual menu:Yes (English, Spanish, French)
Picture-in-picture (PIP):Yes (2-tuner, with side-by-side split screen)
Channel coverage:VHF 2-13, UHF 14-69, CATV 1-125 (up to 181 pre-selected channels)
Remote control:Yes (universal)
SAP:Yes
Sleep timer:Yes
Audio tone controls:BBE Sound with 5-band equalizer
Surround sound:Yes (Dolby Digital 5.1-channel digital passthrough)
VGA/SVGA input:No
Audio outputs:1 stereo analog (left/right) RCA, 2 Dolby Digital (1 coaxial, 1 optical)
Audio inputs:3 stereo analog (left/right) RCA
Video outputs:1 RF
Video inputs:10
Headphone jack:No
Digital video input:1
Component video:2 (HD)
Composite video:3
S-video:2
RF:2
Front AV jacks:No
Side AV jacks:Yes
Power consumption:230 watts
UPC:036725252905
Width:48.4 inches
Height:54.8 inches
Depth:20.9 inches
Weight:163.1 pounds
Shipping dimensions:53.5 x 59.2 x 25.8 inches (W x H x D)
Shipping weight:176.4 pounds
In the box:TV, remote control, 2 AAA batteries, user's manual
