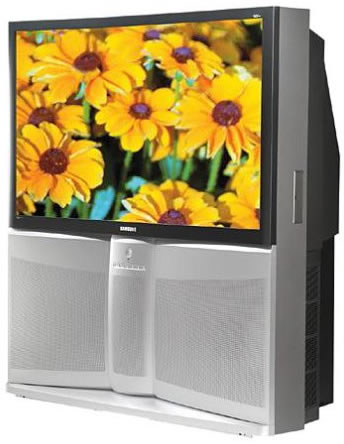

Samsung HCN5529W

Operating manual

Features

Samsung HCN5529W

Specifications

Screen size:55 inches
TV type:Rear-projection
HDTV capable:Yes
Aspect ratio:16:9 (with 5 preset aspect-ratio modes)
Speaker wattage per channel:15
Number of speakers:2
Comb filter:Yes (3D Y/C digital)
Display system:Three 7-inch HD Fine Resolution CRTs with Fine Focus lenses
First-surface mirror:Yes
Line doubling:Yes (all-format conversion to 720p with Progressive Cinema Scan)
3:2 pulldown:Yes (in Film mode)
Signal type:NTSC, ATSC (no DTV receiver included)
Picture modes:Standard, movie, or custom
Sound modes:Standard, movie, music, speech, or custom
Picture enhancements:HD Fine Pitch Screen, HD Fine Focus CRT lenses, RealFlect System Pro
Multilingual menu:Yes (English, Spanish, French)
Picture-in-picture (PIP):Yes (2-tuner, with side-by-side split screen)
Channel coverage:VHF 2-13, UHF 14-69, CATV 1-125 (up to 181 pre-selected channels)
Remote control:Yes (universal)
SAP:Yes
Sleep timer:Yes
Audio tone controls:BBE Sound with 5-band equalizer
Surround sound:Yes (Dolby Digital 5.1-channel digital passthrough)
VGA/SVGA input:No
Audio outputs:1 stereo analog (left/right) RCA, 2 Dolby Digital (1 coaxial, 1 optical)
Audio inputs:3 stereo analog (left/right) RCA
Video outputs:1 RF
Video inputs:9
Headphone jack:No
Digital video input:0
Component video:2 (HD)
Composite video:3
S-video:2
RF:2
Front AV jacks:No
Side AV jacks:Yes
Power consumption:230 watts
UPC:036725255296
Width:51.7 inches
Height:56.5 inches
Depth:25.6 inches
Weight:219.4 pounds
Shipping dimensions:56.3 x 66 x 31.1 inches (W x H x D)
Shipping weight:255.7 pounds
In the box:TV, remote control, 2 AAA batteries, user's manual
