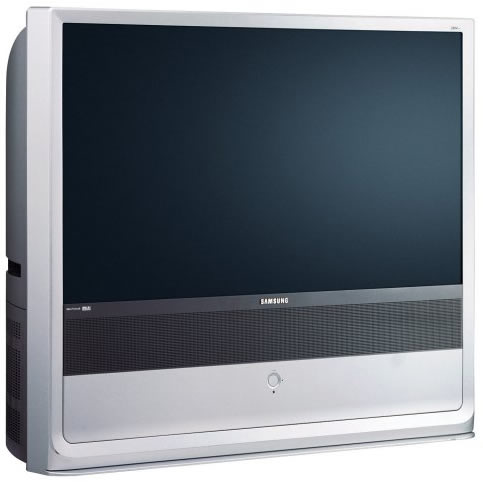

Samsung HC-P4752W

Operating manual

Features

Samsung HC-P4752W

Specifications

Screen size:47 inches
TV type:Rear-projection with HD fine-pitch screen
HDTV capable:Yes
Aspect ratio:16:9
Display system:Three 7-inch HD fine-resolution CRTs with Fine Focus lenses
Focus:Samsung Auto Self Focus (digital 15-point auto focus)
Dot pitch:.52 mm
Speaker wattage per channel:20
Number of speakers:2 (2-way each)
Comb filter:3D Y/C digital
Scan velocity modulation:Yes
First-surface mirror:No (but offers second-surface mirror)
3:2 pulldown detection:Yes
Signal type:NTSC, decoded ATSC (480p, 1080i)
Protective screen guard:Yes (anti-glare)
Auto pixel shift:Yes (reduces image burn-in)
Picture modes:Standard, movie, custom, dynamic
Picture enhancements:RealFlect video system
Sound modes:Standard, music, movie, speech, or custom
Multilingual menu:Yes (English, Spanish, French)
Parental control:Yes (V-Chip)
Picture-in-picture (PIP):2-tuner with multiwindow viewing and stock-ticker modes
Remote control:Universal
Discrete IR codes:Yes (aides in remote macro commands)
SAP:Yes
Audio tone controls:5-band sound equalizer
Surround sound:SRS TruSurround XT (simulated surround sound)
VGA/SVGA input:No
Audio outputs:1 stereo analog (left/right) RCA
Audio inputs:6 stereo analog (left/right) RCA, 1 stereo minijack left/right input (for DVI-adapter source)
Video outputs:1 RF
Video inputs:11
Headphone jack:No
Digital video input:1 HDMI (DVI-compatible with optional adapter)
Component video:3 (HD/SD)
Composite video:3
S-video:2
RF:2
Color temperature control:Yes
Front AV jacks:No
Side AV jacks:Yes
Power supply:AC 120V, 60 Hz
Power consumption:240 watts
UPC:036725243866
Width:44.3 inches
Height:38.7 inches
Depth:24.4 inches
Weight:110 pounds
Shipping dimensions:48.8 x 43.3 x 29.5 inches (W x H x D)
Shipping weight:128.6 pounds
In the box:TV, user's manual, remote control, 2 AAA batteries, and registration/warranty card
