Samsung HL-N5065W

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!


Samsung HLN5065W


Screen size:50 inches
TV type:Rear-projection with DLP (Digital Light Processing) technology
Display device:Single 0.8 inch Digital Micro Device
Screen aging/burn-in:Not going to happen
HDTV capable:Yes
Aspect ratio:16:9
Speaker wattage per channel:15
Number of speakers:2
Comb filter:Yes (3D Y/C digital)
Horizontal resolution:720 lines
Line doubling:Yes (all-format conversion to 720p)
3:2 pulldown:Yes (in Film mode)
Noise reduction:Yes
Signal type:NTSC, ATSC (no DTV receiver included)
Black-level expansion:Yes (part of DNIe processing)
Picture modes:Standard, Film
Sound modes:5 (sports, movies, music, speech, and custom settings)
Picture enhancements:Samsung DNIe (Digital Natural Image engine), includes Detail Enhancer, Contrast Enhancer, White Balance and Color Optimizer, and Noise Reduction with 3D Motion Optimizer
Multilingual menu:Yes (English, Spanish, French)
Parental control:Yes (V-Chip)
Picture-in-picture (PIP):Yes (2-tuner, with side-by-side split screen)
Channel coverage:VHF 2-13, UHF 14-69, CATV 1-125 (up to 181 preselected channels)
Remote control:Yes (universal)
Sleep timer:Yes
Audio tone controls:BBE High-Definition Sound
Surround sound:Yes (Virtual Dolby simulated surround)
VGA/SVGA input:Yes (D-Sub 15 pin, XGA)
Audio outputs:0
Audio inputs:4 stereo analog (left/right)
Video outputs:1 RF
Video inputs:13 (including PC input)
Headphone jack:No
Digital video input:1 (DVI, with HDCP antipiracy compliance, HDMI compatible)
Component video:3 (2 HD, 1 480p/i progressive-scan input for DVD)
Composite video:3
Pixels:1,280 x 720
Dot pitch:0.155 mm
Horizontal viewing angle:150 degrees
Horizontal frequency:60 Hz (progressive)
Lamp life:8,000 hours (average, at half brightness)
Front AV jacks:No
Side AV jacks:Yes

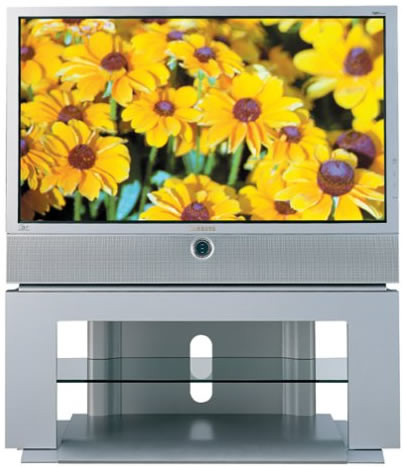

Optional accessory:TR5050 stand, pictured (46.6 x 19.5 x 21.9 inches [W x H x D], 91.9 pounds, UPC 036725250727)
Width:46.6 inches
Height:33.8 inches
Depth:17.6 inches
Weight:77.6 pounds
Shipping dimensions:50.9 x 39.2 x 22.1 inches (W x H x D)
Shipping weight:97 pounds
In the box:TV, remote control, 2 AAA batteries, user's manual
