Samsung HL-N617W

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!


Samsung HLN617W


In the box:TV, remote control, 2 AAA batteries, user's manual
Screen size:61 inches
TV type:Rear-projection with DLP (Digital Light Processing) technology
Display device:Single 0.8 inch Digital Micro Device
HDTV capable:Yes
Aspect ratio:16:9
Speaker wattage per channel:20
Number of speakers:2
Comb filter:Yes (3D Y/C digital)
Horizontal resolution:720 lines
Line doubling:Yes (all-format conversion to 720p)
3:2 pulldown:Yes (in Film mode)
Noise reduction:Yes
Signal type:NTSC, ATSC (no DTV receiver included)
Black-level expansion:Yes (part of DNIe processing)
Last-channel recall:Yes
Picture modes:Standard, Film
Sound modes:5 (sports, movies, music, speech, and custom settings)
Picture enhancements:Samsung DNIe (Digital Natural Image engine): includes Detail Enhancer, Contrast Enhancer, White Balance and Color Optimizer, and Noise Reduction with 3D Motion Optimizer
Multilingual menu:Yes (English, Spanish, French)
Parental control:Yes (V-Chip)
Picture-in-picture (PIP):Yes (2-tuner, with side-by-side split screen)
Channel coverage:VHF 2-13, UHF 14-69, CATV 1-125 (up to 181 pre-selected channels)
Remote control:Yes (universal)
Audio tone controls:BBE High Definition Sound
Surround sound:Yes (Virtual Dolby simulated surround)
VGA/SVGA input:Yes (D-Sub 15 pin, XGA)
Audio outputs:1 stereo analog (left/right)
Audio inputs:4 stereo analog (left/right)
Video outputs:1 RF
Video inputs:13 (including PC input)
Headphone jack:No
DVI-HDTV:1 (HDMI compatible)
Component video:3 (2 HD, 1 480p/i progressive-scan input fofr DVD)
Composite video:3
Pixels:1,280 x 720
Dot pitch:0.155 mm
Horizontal viewing angle:150 degrees
Horizontal frequency:60 Hz (progressive)
Lamp life:6,000 hours (average, at half-brightness; user-replaceable 120-watt lamp)
Front AV jacks:No
Side AV jacks:Yes

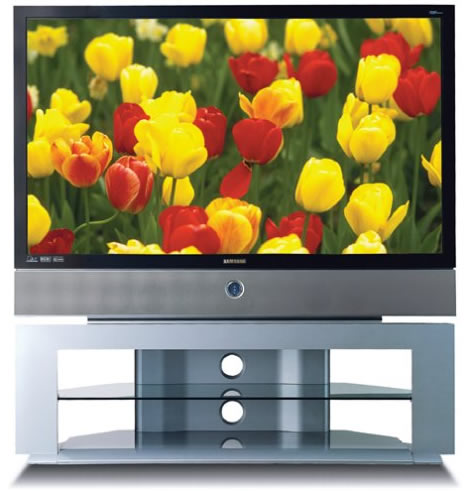

Optional accessory:Stand (TR61L2S, pictured, 56.5 x 17.1 x 21.9 inches, 97.9 pounds, UPC: 036725261716)
Length:19.4 inches
Width:56.5 inches
Height:40.2 inches
Weight:77.6 pounds
