Samsung HL-P5663W

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

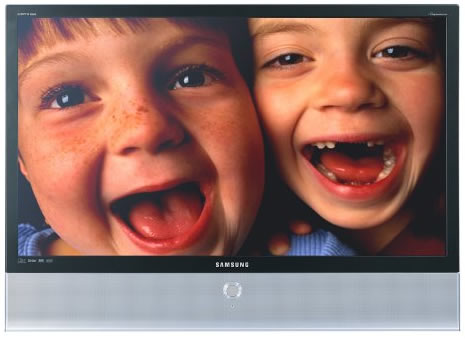

Samsung HLP5663W

Specifications

Screen size:56 inches
TV type:DLP projection with an HD ultra-fine-pitch screen
HDTV capable:Yes
Aspect ratio:16:9
3:2 pulldown detection:Yes (Cinema Smooth mode)
Color wheel:7-segment, 10,800 rpm
Display device:A single 0.55-inch Digital Micro-Mirror (DMM) device
Speaker wattage per channel:15 watts x 2
Number of speakers:2 (2-way each)
Comb filter:3D Y/C
Line doubling:Yes (all-format upconversion to 1,280 x 720)
Signal type:NTSC, ATSC (480p, 720p, 1080i)
Picture enhancements:Digital Natural Image engine (DNIe)
Picture modes:Film mode (powered by Genesis microchip); standard, cinema, and dynamic
Last-channel recall:Yes
Multilingual menu:English, Spanish, French
Parental control:V-Chip
Picture-in-picture (PIP):2-tuner, split-screen
Remote control:Universal
Discrete IR codes:Yes (for use with a macro/programmable remote control)
Surround sound:SRS TruSurround XT
VGA/SVGA input:1 (15-pin D-Sub)
Audio outputs:1 stereo analog (left/right) RCA
Audio inputs:7 stereo analog (left/right) RCA
Video outputs:1 RF, 1 composite-video
Video inputs:13
Digital video input:2 (1 DVI, 1 HDMI)
Component video:2 (HD/SD)
Composite video:3
S-video:3
RF:2
Pixels:1,280 x 720
Contrast ratio:1,500:1
Lamp life:5,000 to 8,000 hours
Color temperature control:Yes
Front AV jacks:No
Side AV jacks:Yes
Wall mountable:Yes
Acoustics:48 dB (30 percent quieter than conventional sets)
Power supply:AC 120V, 60 Hz
Optional accessories:Stand: TR63
UPC:036725200630
Width:52.4 inches
Height:37.9 inches
Depth:15.6 inches
Weight:91.5 pounds
Shipping dimensions:57.3 x 43.5 x 20.5 inches (W x H x D)
Shipping weight:115.7 pounds
In the box: TV, remote control, remote batteries, user manual, and warranty information
