Samsung HL-R4667W

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

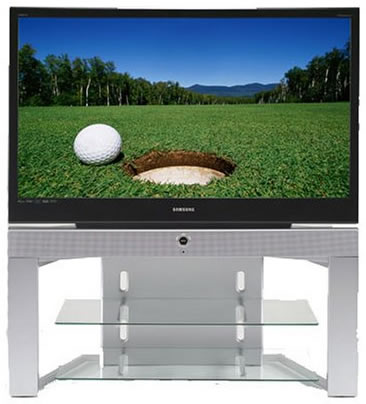

Samsung HL-R4667W

Specifications

Screen size:46 inches
TV type:DLP projection with an HD Ultra-Fine-Pitch screen
HDTV capable:Yes
Aspect ratio:16:9
3:2 pulldown detection:Yes (Cinema Smooth mode)
Light engine:Single-panel DLP
Digital micro-mirror device:0.55-inch DMD Chip
Color wheel:7-segment, 10,800 rpm
Display device:Cinema Smooth Gen-5 HD
CableCARD-ready:Yes (POD Slot)
Speaker wattage per channel:15 watts x 2
Number of speakers:2
Comb filter:3D Y/C
Line doubling:Yes (all-format upconversion to progressive-scanned 1,280 x 720 images)
Signal type:NTSC, ATSC (480p, 720p, 1080i)
Picture enhancements:Digital Natural Image engine (DNIe)
Picture modes:Film mode; standard, cinema, and dynamic
Audio modes:5 different modes for sports, movies, music, speech, and custom settings
Auto channel setup:Yes
Channel labeling:Yes
Closed captioning:Yes
Mute:Yes
Last-channel recall:Yes
Multilingual menu:English, Spanish, French
Parental control:V-Chip
Picture-in-picture (PIP):2-tuner, split-screen
Remote control:Universal
Discrete IR codes:Yes (for use with a macro/programmable remote control)
SAP:Yes
Sleep timer:Yes
Audio tone controls:No
Audio balance:No
Surround sound:SRS TruSurround XT, Dolby Digital 5.1 passthrough to compatible AV receivers
VGA/SVGA input:1 (15-pin D-Sub)
Audio outputs:1 stereo analog (left/right) RCA, 1 optical digital-audio
Audio inputs:5 stereo analog (left/right) RCA, 1 stereo analog .125-inch minijack input
Video outputs:1 RF, 1 composite-video
Video inputs:13
Headphone jack:No
Digital video input:2 (1 DVI, 1 HDMI), 2 D-Net (IEEE 1394)
Component video:2 (HD or SD each)
Composite video:3
S-video:3
RF:2
Other ports:1 G-Link (minijack), 1 AnyNet (minijack)
Pixels:1,280 x 720
Contrast ratio:Up to 2,500:1
Brightness:1,000 cd/m2
Dot pitch:.155 mm
Lamp:100W/120W (standard/dynamic)
User-replaceable lamp:Yes
Color temperature control:Yes
Front AV jacks:No
Side AV jacks:Yes
Wall mountable:No
Power supply:AC 120V, 60 Hz
Power consumption:230 watts
Remote component linking:Samsung AnyNet (allows you to control, via the TV remote control, key functions of the Samsung AV devices connected to your TV)
Optional accessories:Stand: TR46X3 (43 x 17.8 x 19 inches, W x H x D)
UPC:036725246676
Width:42.8 inches
Height:32 inches
Depth:13.4 inches
Weight:66.8 pounds
Shipping dimensions:47.2 x 17.9 x 37.1 inches (W x H x D)
Shipping weight:83.8 pounds
In the box:TV, remote control, remote batteries, a user's manual, an AnyNet cable, and warranty information
