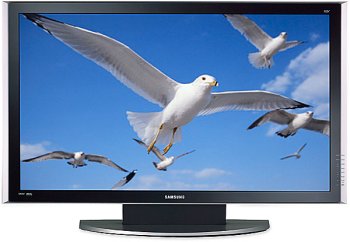

Samsung HP-P5071

User Manual

Sorry, we do not currently have a manual available for this item.
Request a manual | Submit a manual

Features

Samsung HP-P5071

Specifications

Screen size:50 inches
TV type:Gas-plasma
HDTV capable:Yes
Aspect ratio:16:9
3:2 pulldown detection:No
Speaker wattage per channel:15 watts x 2
Number of speakers:0 (speakers sold separately)
Comb filter:No
Signal type:NTSC, decoded ATSC (480p, 720p, 1080i)
Picture enhancements:DNIe (Samsung Digital Natural Image engine): combines Motion Optimizer, Contrast Enhancer, Detail Enhancer, and Color Optimizer
Picture modes:Standard/Custom/Dynamic/Movie
Sound modes:Standard/Custom/Music/Movie/Speech
Closed captioning:Yes
Parental control:V-Chip
Picture-in-picture (PIP):2-tuner with split-screen
Remote control:Yes
Audio tone controls:TruBass enhancement
Surround sound:SRS TruSurround XT
VGA/SVGA input:1
Audio outputs:1 stereo analog (left/right) RCA, 1 monaural RCA subwoofer output, 2 speaker-level analog audio outputs (with clip-type speaker terminals)
Audio inputs:4 stereo analog (left/right) RCA
Video outputs:1 (composite-video)
Headphone jack:No
Digital video input:1 (DVI-HDTV with HDCP)
Component video:2 (HD)
Composite video:3
S-video:2
RF:1 (dual-tuner)
Pixels:1,366 x 768
Contrast ratio:3,000:1
Brightness:1,000 cd/m2
Horizontal viewing angle:160 degrees
Vertical viewing angle:160 degrees
Cooling system:Fanless
Lamp life:50,000 hours (panel life)
Color temperature control:Yes
Discrete IR codes:Yes
Front AV jacks:No
Side AV jacks:Yes
Wall mountable:Yes (with optional wallmount kit)
Optional accessories:Bottom-mounting speakers, wall mount (WMN4240)
Approvals:FCC Class B Certification
UPC:036725237537
Width:49.5 inches
Height:29.1 inches (without speakers or stand), 31.8 inches (with speakers), 33.2 inches (with speakers and stand)
Depth:3.3 inches (without speakers or stand), 4.3 inches (with speakers), 15.9 inches (with speakers and stand)
Weight:101.1 pounds
Shipping dimensions:57.7 x 19.1 x 46.0 inches (W x H x D)
Shipping weight:159.6 pounds
In the box:TV, pedestal stand, remote control, remote batteries, user's manual, warranty card, and an RF coaxial video cable
