Samsung LT-M1755

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

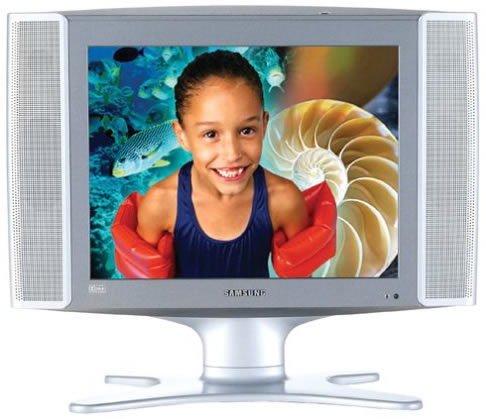

Samsung LTM-1755

Specifications

Screen size:17 inches
TV type:TFT LCD
HDTV capable:Yes (display exceeds 720p)
Aspect ratio:4:3
Speaker wattage per channel:5
Number of speakers:2
Comb filter:Yes
Signal type:NTSC, 480i, and decoded 480p, 720p, or 1080i (does not include ATSC tuner)
Auto channel setup:Yes
Closed captioning:Yes
Last-channel recall:Yes
Multilingual menu:Yes (English, French, Spanish)
Parental control:Yes (V-Chip)
Picture-in-picture (PIP):Yes (split side-by-side P and P; PC PIP lets you watch TV and PC simultaneously)
Remote control:Yes
SAP:No
Sleep timer:Yes (10 minutes to 6 hours)
Surround sound:Yes (Dolby Virtual Surround simulated)
VGA/SVGA input:No
Audio outputs:0
Audio inputs:1 stereo analog audio (left/right)
Video outputs:0
Video inputs:5 (S-video, interlaced component-video, progressive HD component-video, PC/composite-video, RF)
Headphone jack:Yes
Component video:2 (1 interlaced, 1 progressive)
Composite video:1
S-video:1
RF:1
Pixels:1,280 x 1,024 (SXGA)
Contrast ratio:400:1
Brightness:350 cd/m2
Horizontal viewing angle:150 degrees
Vertical viewing angle:120 degrees
Response time:25 ms
Lamp life:60,000 hours
Color temperature control:Yes
Front AV jacks:No
Sound leveler system:Yes
Wall mounting:Yes (VESA-standard mounting holes)
Energy Star-compliant:Yes
Power consumption:58 watts
Length:2.25 inches (without stand)
Width:20.875 inches
Height:17.625 inches (with stand)
Weight:10.75 pounds (with stand)
