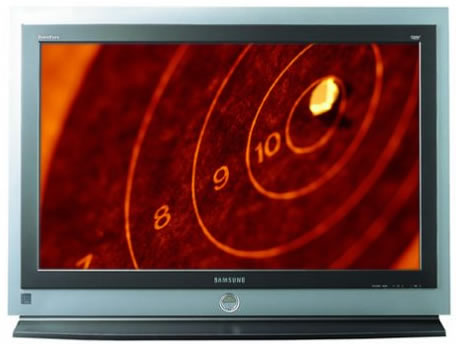

Samsung LT-M295W

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

Samsung LTM295W

Specifications

Screen size:29 inches
TV type:LCD
HDTV capable:Yes
Aspect ratio:16:9
Speaker wattage per channel:10
Number of speakers:0 (optional speakers affix to either side of screen)
Comb filter:Yes
Signal type:NTSC, 480i, 480p, 720p, 1080i
Auto channel setup:Yes
Closed captioning:Yes
Last-channel recall:Yes
Multilingual menu:Yes (English, French, Spanish)
Parental control:Yes (V-Chip)
Picture-in-picture (PIP):Yes (two-tuner; split side-by-side P and P; PC PIP lets you watch TV and PC simultaneously)
Remote control:No
SAP:No
Sleep timer:No
Surround sound:Yes (simulated)
VGA/SVGA input:No
Audio outputs:0
Audio inputs:1 stereo analog audio (left/right)
Video outputs:0
Video inputs:5 (DVI digital video interface, S-video, interlaced component-video, progressive HD component-video, PC/composite-video)
Headphone jack:Yes
Component video:2
Composite video:1
S-video:1
RF:0
Pixels:1,280 x 768 (XGA)
Contrast ratio:600:1
Brightness:500 cd/m2
Horizontal viewing angle:170 degrees
Vertical viewing angle:170 degrees
Response time:22 ms
Lamp life:60,000 hours
Color temperature control:Yes
Front AV jacks:No
Length:2 inches (without stand)
Width:30 inches
Height:22.5 inches (with stand)
Weight:30.3 pounds (with stand)
