Samsung LT-N1785W

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

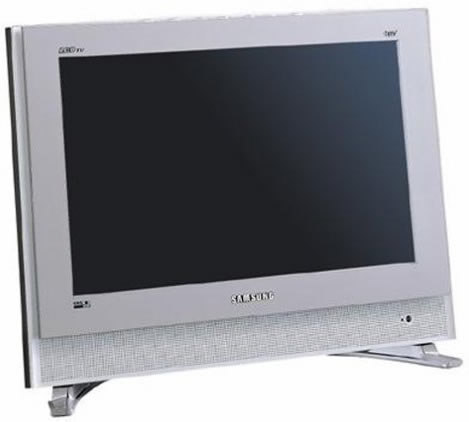

Samsung LTN1785W

Specifications

In the box:TV, TV stand, power adapter, power cord, 15-pin D-Sub video cable, remote control, remote batteries, user's manual, product-registration card
Color:Silver
Screen size:17 inches
TV type:TFT LCD
HDTV capable:Yes
Aspect ratio:16:9
Speaker wattage per channel:3
Number of speakers:2
Comb filter:Yes (3D Y/C digital)
Signal type:NTSC, decoded ATSC (480p, 720p, 1080i)
Auto channel setup:No
Channel labeling:No
Closed captioning:Yes
Multilingual menu:Yes (English, Spanish, French)
Parental control:Yes (V-Chip)
Picture modes:Custom, Standard, Dynamic, and Movie
Sound modes:Standard, Music, Speech, Movie, and Custom
Picture-in-picture (PIP):Yes (split-PC--watch TV while working on your computer)
Remote control:No
SAP:Yes
Surround sound:Yes (WOW simulated surround from any two speakers)
VGA/SVGA input:Yes
Audio outputs:0
Audio inputs:1 minijack stereo analog (left/right, .125-inch); 3 stereo analog (left/right) RCA inputs
Video outputs:0
Video inputs:6
Headphone jack:Yes (.125-inch)
Cable management:Yes (improved)
DVI-HDTV:0
Component video:2 (HD)
Composite video:1
S-video:1
RF:1
Pixels:1,280 x 768
Contrast ratio:600:1
Brightness:450:1 cd/m2
Horizontal viewing angle:170 degrees
Vertical viewing angle:170 degrees
Response time:25 ms
Lamp life:More than 60,000 hours
Color temperature control:Yes
Front AV jacks:No
Sound leveler system:Yes
Wall mountable:Yes (using optional wall-mount, Samsung WMTL1700X/XAA)
Power supply:120W AC, 60 Hz
Power consumption:70 watts (power-on), 2 watts (standby)
UPC:036725217850
Length:3.5 inches (without stand), 6.9 inches (with stand)
Width:18.3 inches (without stand), 21.9 inches (with stand)
Height:13.6 inches (without stand), 18.66 inches (with stand)
Weight:16.3 pounds (shipping)
