Samsung LT-N226W

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

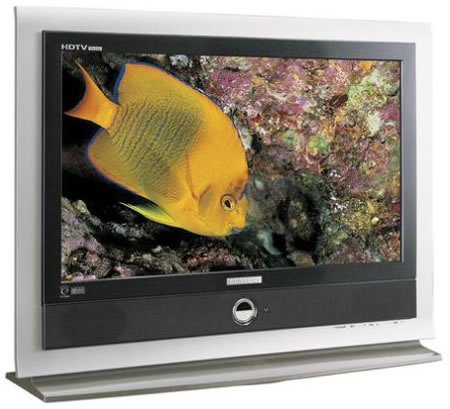

Samsung LTN226W


Screen size:22 inches
HDTV capable:Yes
Aspect ratio:16:9
3:2 pulldown:No
Speaker wattage per channel:7
Number of speakers:2 (plus passive "integrated bottom speaker")
Comb filter:Yes (3D Y/C digital)
Signal type:NTSC, decoded ATSC (480p, 720p, 1080i)
Auto channel setup:Yes
Onscreen display:Yes (translucent overlay)
Multilingual menu:Yes (English, Spanish, French)
Parental control:Yes (V-Chip)
Picture-in-picture (PIP):Yes (split-screen and PC PIP: PC plus one other TV or input source)
Picture freeze:Yes
Remote control:Yes
Sleep timer:Yes
Auto power off:Yes
Audio tone controls:No
Audio balance:No
Surround sound:Virtual Dolby (simulated surround from any 2 speakers)
VGA/SVGA input:1
Audio outputs:1 monaural RCA subwoofer output
Audio inputs:4 stereo analog (left/right) inputs: 3 RCA, 1 minijack .125-inch (latter is designated for PC)
Video outputs:0
Video inputs:6
Headphone jack:Yes (.125-inch, stereo)
Digital video input:1 (DVI with HDCP copy protection)
Component video:2 (1 SD, 1 HD)
Composite video:1
RF:1 (CATV/VHF/UHF 75-ohm, F-type)
Pixels:1,280 x 720 (at 60 Hz)
Contrast ratio:500:1
Brightness:450 cd/m2
Dot pitch:0.381 x 0.381 mm (H, V)
Horizontal viewing angle:170 degrees
Vertical viewing angle:170 degrees
Horizontal frequency:30 to 61 kHz
Vertical frequency:56 to 75 Hz
Response time:16 ms
Color temperature control:Yes (normal, warm, cool)
Front AV jacks:No
Side AV jacks:Yes
Wall mountable:Yes (includes VESA-standard mounting holes)
Power supply:AC 100 to 240V (50/60 Hz), 2A; DC 14V/8A
Power consumption:120 watts (power on), less than 5 watts (standby)
Security:Kensington lock
Width:23.6 inches
Height:18.4 inches with stand;17.5 inches without stand
Depth:7.3 inches with stand; 1.8 inches without stand
Weight:19.8 pounds
In the box:TV, built-in swivel base, remote controls, remote battery, stand cap, AC power cord, AC power adapter, a user's manual, and warranty information
