Samsung LT-N325W

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

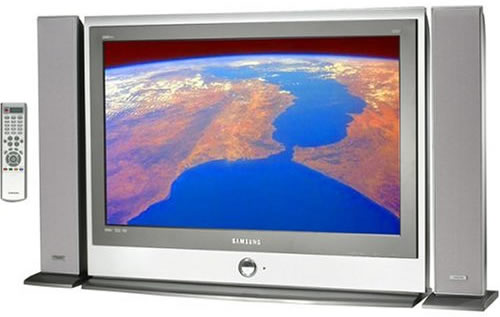

Samsung LTN325W

Specifications

In the box:TV, TV stand with swivel base, user's manual, product-registration card
Color:Silver with black trim
Screen size:32 inches
TV type:TFT LCD
HDTV capable:Yes
Aspect ratio:16:9
Speaker wattage per channel:10 watts x 5
Number of speakers:2 (left/right, detachable), plus 10 wpc clip-type speaker outputs for left/right, center, and left/right surround speakers (not included)
Comb filter:Yes (3D Y/C digital)
Signal type:NTSC, decoded ATSC (480p, 720p, 1080i)
Auto channel setup:Yes
Channel labeling:No
Closed captioning:Yes
Last-channel recall:Yes
Multilingual menu:Yes (English, Spanish, French)
Mute:Yes
Parental control:Yes (V-Chip)
Picture enhancements:DNIe (Digital Natural Image engine): Detail Enhancement, Contrast Enhancement, Noise Reduction, White Balance Enhancement
Screen-capture picture freezing:Yes
Picture modes:Custom, Standard, Dynamic, and Movie
Sound modes:Standard, Music, Speech, Movie, and Custom
Picture-in-picture (PIP):Yes (dual-tuner split-screen and split-PC--watch TV while working on your computer)
Remote control:Yes
SAP:Yes
Clock:Yes
Sleep timer:Yes (and on timer)
Surround sound:Yes (Dolby Digital 5.1-channel decoding)
VGA/SVGA input:Yes
Audio outputs:5 speaker-level outputs (wire-clip), 1 monaural subwoofer output (RCA), 1 stereo analog (left/right) RCA
Audio inputs:4 stereo analog (left/right), 1 minijack stereo analog (left/right, .125-inch), 2 digital-audio (1 each optical and coaxial)
Video outputs:1 composite-video
Video inputs:7
Headphone jack:Yes (.125-inch)
Cable management:Yes (improved)
DVI-HDTV:1
Component video:2 (HD)
Composite video:2
S-video:1
RF:1
Pixels:1,280 x 768
Contrast ratio:600:1
Brightness:500:1 cd/m2
Horizontal viewing angle:170 degrees
Vertical viewing angle:170 degrees
Response time:16 ms
Color temperature control:Yes
Front AV jacks:No
Sound leveler system:Yes
Wall mountable:Yes (using optional wall-mount, Samsung WMTL3200)
Kensington lock:Yes
Power supply:120W AC, 60Hz
Power consumption:140 watts (power-on), 1 watts (standby)
UPC:036725232501
Dimensions:Monitor: 31.5 x 23.5 x 3.4 inches
Dimensions:Monitor with Stand: 31.5 x 24.6 x 8.6 inches
Dimensions:Speakers: 4.1 x 23.5 x 2.3
Dimensions:Monitor with Stand and Speakers: 39.9 x 24.6 x 8.6 inches
Dimensions (shipping):Monitor with Stand and Speakers: 38.2 x 31.8 x 19.6 inches
Weight:Monitor with Stand: 48.5 pounds
Weight:Monitor with Stand and Speakers: 57.3 pounds
Weight:Speakers: 8.4 pounds
