Samsung LT-P2045

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

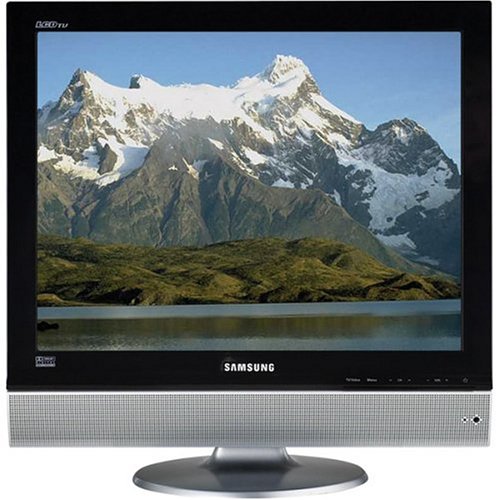

Samsung LT-P2045

Specifications

Screen size:20 inches
TV type:TFT-LCD
HDTV capable:Yes (EDTV, up to 480p)
Aspect ratio:4:3
3:2 pulldown detection:No
Speaker wattage per channel:3
Number of speakers:2
Comb filter:Digital
Signal type:NTSC, decoded ATSC (480p)
Picture modes:Dynamic, Standard, Movie, Custom
Sound modes:Standard, Music, Speech, Movie, and Custom
Closed captioning:Yes
Multilingual menu:English, Spanish, French
Parental control:V-Chip
Picture-in-picture (PIP):No
Remote control:Yes
SAP:Yes
Sleep timer:Yes (and on timer)
Surround sound:No
VGA/SVGA input:1 (RGB, 15-pin D-Sub)
Audio outputs:0
Audio inputs:2 stereo analog (left/right) RCA, 1 minijack .125-inch stereo analog (PC)
Video outputs:0
Video inputs:5
Headphone jack:Yes (.125-inch)
Digital video input:0
Component video:1 (480i/480p)
Composite video:1
S-video:1
RF:1
Pixels:640 x 480
Contrast ratio:500:1
Brightness:450 cd/m2
Horizontal viewing angle:160 degrees
Vertical viewing angle:160 degrees
Response time:16 ms
Color temperature control:Yes
Front AV jacks:No
Sound leveler system:Yes
Wall mountable:Yes (VESA Compatible, 100mm x 100mm)
Power supply:AC 120V, 60 Hz (built-in power supply--no bulky "brick")
Power consumption:55 watts (standby: 3 watts)
UPC:036725222557
Width:18.9 inches
Height:18.2 inches (with stand), 17.2 inches (without stand)
Depth:3 inches (without stand), 8.9 inches (with stand)
Weight:17.6 pounds (with stand)
In the box:TV, dual-purpose stand/wall mount (tilt-swivel), a remote control, remote batteries, a user's manual, an AC power cord, and warranty information
Variations: LT-P2045UX
