Samsung LT-P326W

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

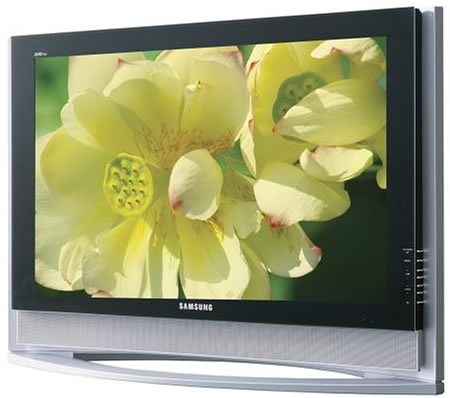

Samsung LT-P326W

Specifications

Screen size:32 inches
TV type:TFT-LCD
HDTV capable:Yes
Aspect ratio:16:9
3:2 pulldown detection:No
Speaker wattage per channel:10 watts RMS x 2
Number of speakers:2
Comb filter:3D Y/C digital
Noise reduction:Yes (part of DNIe)
Signal type:NTSC, decoded ATSC (480p, 720p, 1080i scaled for 768 viewing)
Picture enhancements:DNIe (Samsung Digital Natural Image engine)
Picture modes:Dynamic, Standard, Movie, Custom; Wide, Panorama Zoom 1, 2/4:3 modes
Sound modes:Standard, Music, Speech, Movie, and Custom
Picture freeze:Yes
Closed captioning:Yes
Multilingual menu:English, Spanish, French
Parental control:V-Chip
Picture-in-picture (PIP):Dual NTSC tuners
Remote control:Yes
SAP:Yes
Sleep timer:Yes (and on timer)
Surround sound:SRS TruSurround simulated surround sound from 2 speakers
VGA/SVGA input:1 (RGB, 15-pin D-Sub)
Audio outputs:1 stereo analog (left/right) RCA, 1 monaural RCA subwoofer output
Audio inputs:4 stereo analog (left/right) RCA, 1 minijack .125-inch stereo analog (PC)
Video outputs:1 (composite-video)
Video inputs:6
Headphone jack:Yes (.125-inch)
Digital video input:2 (1DVI-HDTV with HDCP, 1 HDMI-HDTV)
Component video:2 (HD)
Composite video:1
S-video:1
RF:1
Pixels:1,280 x 768
Contrast ratio:600:1
Brightness:500 cd/m2
Horizontal viewing angle:170 degrees
Vertical viewing angle:170 degrees
Response time:16 ms
Color temperature control:Yes
Front AV jacks:No
Sound leveler system:Yes
Wall mountable:Yes (VESA-compatible 100 mm x 200 mm mounting holes)
Optional accessories:Optional wall-mount kit (WMTL3202)
Power supply:AC 100V, 60 Hz (with space-saving built-in power supply--no brick attachment)
Power consumption:150 to 170 watts (standby: 1 watt)
UPC:036725215832
Width:33.9 inches (with speakers)
Height:23 inches (23.9 inches with stand)
Depth:5 inches (12.9 inches with stand)
Weight:50.7 pounds
Shipping dimensions:40.2 x 33.5 x 13.0 inches (W x H x D)
Shipping weight:67.2 pounds
In the box:TV, detachable speakers, remote control, remote batteries, swivel base, a user's manual, an AC power cord, and warranty information
