Samsung TXN1430F

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

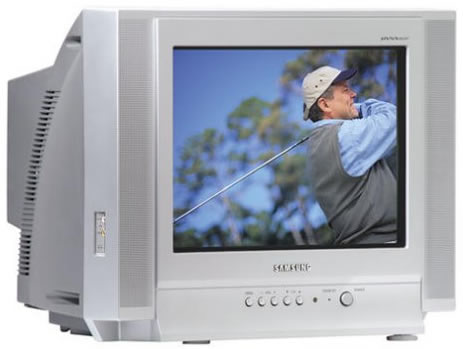

Samsung TXN1430F


In the box:TV, remote control, remote batteries, and user's manual
Screen size:14 inches
TV type:CRT with DynaFlat anti-glare picture tube
HDTV capable:No
Aspect ratio:4:3
Speaker wattage per channel:2.5
Number of speakers:2
Comb filter:Yes (digital)
Invar shadow mask:Yes
Horizontal resolution:320 lines
3:2 pulldown:No
Signal type:NTSC
Protective screen guard:No
Auto channel setup:Yes
Closed captioning:Yes
Picture modes:4 (Standard/Dynamic/Movie/Custom, with user adjustable brightness, contrast, sharpness, color, and tint)
Last-channel recall:Yes
Multilingual menu:Yes (English, Spanish, French)
Parental control:Yes (V-Chip)
Picture-in-picture (PIP):No
Remote control:Full-function
Remote Surf timer:Yes (returns TV to original channel so you can browse other channels during commercial breaks)
Self-diagnostic system:Yes (facilitates proper setup)
Auto clock set:Yes
Sleep timer:Yes (and on timer)
Audio tone controls:4 preset audio modes: Standard, Music, Movie, Speech; Turbo Sound boosts high and low frequencies
Surround sound:No
VGA/SVGA input:No
Audio outputs:0
Audio inputs:2 stereo analog (left/right) RCA
Video outputs:0
Video inputs:3
Headphone jack:No
Component video:0
Composite video:2
Color temperature control:Yes
Front AV jacks:No
Side AV jacks:Yes
Sound leveler system:Yes
Power supply:AC 120V, 60 Hz
Power consumption:60 watts (1.3 watts standby)
Energy Star compliant:Yes
Width:17 inches
Height:14.3 inches
Depth:15.6 inches
Weight:26.5 pounds
