Samsung TXN2020

User Manual

Sorry, we do not currently have a manual available for this item.
Request a manual | Submit a manual

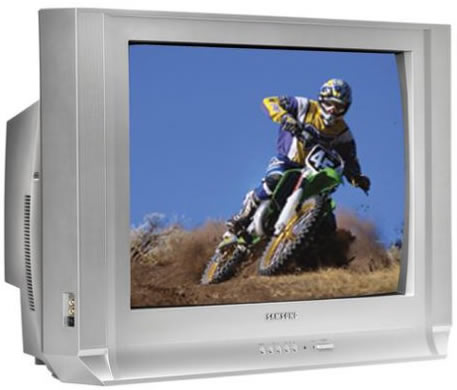

Samsung TXN2020


In the box:TV, remote control, remote batteries, user's manual
Screen size:20 inches
TV type:CRT with dark-tint picture tube
HDTV capable:No
Aspect ratio:4:3
Aspect-ratio control:Normal and zoom (screen-filling) modes
Speaker wattage per channel:2.5 watts
Number of speakers:2 (mono)
Comb filter:Yes (digital)
Horizontal resolution:500 lines (maximum)
3:2 pulldown:No
Signal type:NTSC
Auto channel setup:Yes
Channel coverage:VHF 2-13, UHF 14-69, CATV 1-125 (up to 181 pre-selected channels)
Closed captioning:Yes (CaptionVision)
Picture modes:Standard
Self-diagnostic mode:Yes
Non-volatile memory:Yes (preserves settings in the event of a power outage)
Last-channel recall:Yes
Multilingual menu:Yes (English, Spanish, French)
Parental control:Yes (V-Chip)
Picture-in-picture (PIP):No
Remote control:Yes (full-function)
Sleep timer:Yes
Remote surf timer:Yes (returns TV to original channel after a fixed time so other channels can be browsed during commercial breaks)
Audio tone controls:None
Sound enhancement modes:Standard, Movie, Music, and Speech
Surround sound:No
VGA/SVGA input:No
Audio outputs:0
Audio inputs:2 monaural analog RCA (1 side, 1 rear)
Video outputs:0
Video inputs:3
Headphone jack:Yes (monaural, .125-inch)
Component video:0
Composite video:2
Color temperature control:Yes
Front AV jacks:No
Side AV jacks:Yes
Sound leveler system:Yes
Antenna:CATV/VHF/UHF 75-ohm, F-type
Power supply:120W AC, 60Hz
Power consumption:80 watts (3 watts standby)
Energy Star compliant:Yes
Length:19.7 inches
Width:23 inches
Height:18.4 inches
Weight:46.3 pounds
