Samsung TX-N2730F

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

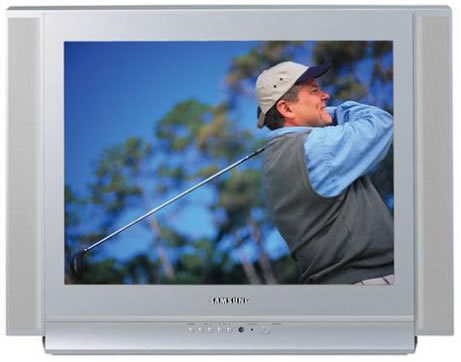

Samsung TXN2730F

Specifications

In the box:TV, remote control, remote batteries, user's manual
Screen size:27 inches
TV type:CRT with DynaFlat screen and dark-tint picture tube
HDTV capable:No
Aspect ratio:4:3
Aspect-ratio control:Normal and zoom (screen-filling) modes
Speaker wattage per channel:5
Number of speakers:2 (side-mounted)
Comb filter:3-line digital
Horizontal resolution:500 lines (maximum)
Invar shadow mask:Yes
Scan velocity modulation:Yes
3:2 pulldown:No
Noise reduction:Yes
Signal type:NTSC
Black-level expansion:Yes
White peak limiter:Yes
Auto channel setup:Yes
Channel labeling:No
Channel coverage:VHF 2-13, UHF 14-69, CATV 1-125 (up to 181 pre-selected channels)
Closed captioning:Yes (CaptionVision)
Picture modes:Standard/Dynamic/Movie/Custom (with user-adjustable brightness, contrast, sharpness, color, and tint)
Self-diagnostic mode:Yes
Auto Kine Aging Bias:Yes (automatically regulates the white balance to maintain consistent, optimal performance even after many years of use)
Non-volatile memory:Yes (preserves settings in the event of a power outage)
Tilt correction:Yes (allows for picture adjustments due to Earth's magnetic field)
Last-channel recall:Yes
Multilingual menu:Yes (English, Spanish, French)
Translucent OSD:Yes
Parental control:Yes (V-Chip)
Picture-in-picture (PIP):No
Remote control:Yes (full-function)
SAP:Yes
Sleep timer:Yes
Remote surf timer:Yes (returns TV to original channel after a fixed time so other channels can be browsed during commercial breaks)
Audio tone controls:Turbo Sound
Sound enhancement modes:Standard, Movie, Music, Speech, and Custom
Surround sound:Yes (simulated)
VGA/SVGA input:No
Audio outputs:1 stereo analog (left/right RCA, fixed-level
Audio inputs:3 stereo analog (left/right)
Video outputs:1 (composite-video)
Video inputs:5
Headphone jack:Yes (.125-inch)
DVI-HDTV:0
Component video:1
Composite video:3
S-video:1
RF:1
Color temperature control:Yes
Front AV jacks:No
Side AV jacks:Yes
Sound leveler system:Yes
Antenna:CATV/VHF/UHF 75-ohm, F-type
Power supply:120W AC, 60 Hz
Power consumption:150 watts (2.7 watts standby)
Energy Star compliant:Yes
UPC:36725227071
Length:19.4 inches
Width:29.9 inches
Height:23.1 inches
Weight:96.3 pounds
