Samsung TX-P2036

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

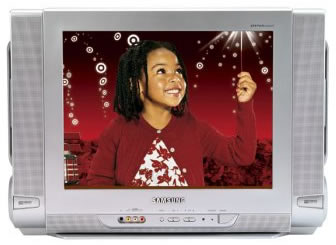

Samsung TX-P2036

Specifications

Screen size:20 inches
TV type:CRT
HDTV capable:No
Aspect ratio:4:3
Speaker wattage per channel:7
Number of speakers:2
Video technologies:DynaFlat antidistortion, antiglare flat picture tube, velocity scan modulation, auto kine aging bias, dynamic black level expansion and white peak limiter
Digital comb filter:Yes
Display format:480i
Invar shadow mask:Yes
Noise reduction:Yes
Signal type:NTSC
Maximum lines of horizontal resolution:500
Last-channel recall:Yes
Multilingual menu:Yes
Parental control:Yes
Picture-in-picture (PIP):No
Remote control:Yes
SAP:Yes
Sleep timer:Yes
Audio tone controls:Yes
Surround sound:Yes (virtual)
Turbo Sound:Yes
MTS:Yes
Audio outputs:1 (fixed)
Audio inputs:3
Video outputs:1
Video inputs:5
Headphone jack:Yes
Digital video input:No
Component video:1
Composite video:3
S-video:1
RF:1
Color temperature control:Yes
Front AV jacks:Yes
Side AV jacks:No
Sound leveler system:Yes
Item dimensions:25.9 x 18.6 x 19.2 inches (W x H x D)
Weight:56.2 pounds
In the box:TX-P2036 20-inch CRT TV, remote control with batteries, warranty, and user's manual
