Samsung TX-P2775H

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

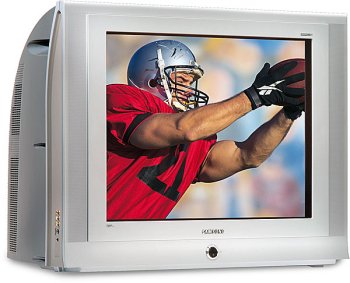

Samsung TX-P2775H


Screen size:27 inches
TV type:CRT with fine-pitch, dark-tint DynaFlat picture tube
HDTV capable:Yes
Aspect ratio:4:3
Aspect-ratio control:Normal and zoom (screen-filling) modes
Speaker wattage per channel:10
Number of speakers:2 (2-way each)
Comb filter:8-bit, 20 MHz, 3D Y/C
Electron gun:Dynamic, multiple-focus
Horizontal resolution:800 lines (maximum)
Invar shadow mask:Yes
Scan velocity modulation:Yes
3:2 pulldown reversal:Yes
Noise reduction:Yes
Signal type:NTSC, ATSC (480p/720p/1080i)
Protective screen guard:No
Black-level expansion:Yes
White peak limiter:Yes
Auto channel setup:Yes
Auto clock set:Yes (reads XDS broadcast data)
Channel labeling:Yes
Input labeling:Yes
Channel coverage:VHF 2-13, UHF 14-69, CATV 1-125 (up to 181 pre-selected channels)
Closed captioning:Yes (CaptionVision)
Picture modes:Standard/Dynamic/Movie/Custom (with user-adjustable brightness, contrast, sharpness, color, and tint)
Picture enhancements:Dynamic Multiple Focus Electron Gun, Pro Picture 3-Stage Video Correction; Vertical Compression (maintains vertical resolution and quality during anamorphic widescreen sources such as DVD), Digital Chassis
Screen capture picture freezing:Yes
Self-diagnostic mode:Yes
Auto Kine Aging Bias:Yes (automatically regulates the white balance to maintain consistent, optimal performance even after many years of use)
Non-volatile memory:Yes (preserves settings in the event of a power outage)
Electronic program guide:Yes (Digital Program Guide)
Tilt correction:Yes
Last-channel recall:Yes
Multilingual menu:Yes (English, Spanish, French)
Translucent OSD:Yes
Parental control:Yes (V-Chip)
Picture-in-picture (PIP):No
Remote control:Yes (universal)
Sleep timer:Yes
On timer:Yes
Remote Surf timer:Yes (returns TV to original channel after a fixed time so other channels can be browsed during commercial breaks)
Audio tone controls:Modes for: Music, Speech (focuses on dialog and reduces background sounds), and Custom (5-band graphic equalizer allows detailed sound adjustments); plus BBE High Definition Sound Processing
Sound enhancement modes:Standard, Movie, Music, Speech, and Custom
Surround sound:Yes (simulated through 2 channels; also Dolby Digital passthrough to compatible AV receivers)
VGA/SVGA input:No
Audio outputs:1 stereo analog (left/right RCA, fixed-level), 1 optical digital-audio (for Dolby Digital passthrough)
Audio inputs:3 stereo analog (left/right)
Video outputs:1 (composite-video)
Video inputs:5
Headphone jack:Yes (.125-inch, side panel)
Digital-video input:1 (DVI-HDTV)
Component video:2 (both auto-sensing 480p/480i/720p/1080i)
Composite video:4
S-video:2 (1 shared with another input)
Color temperature control:Yes
Front AV jacks:No
Side AV jacks:Yes
Sound leveler system:Yes
Antenna:CATV/VHF/UHF 75-ohm, F-type
Power supply:120W AC, 60 Hz
Power consumption:190 watts (1.9 watts standby)
Energy Star compliant:Yes
Width:30 inches
Height:23.6 inches
Depth:20.4 inches
Weight:104.7 pounds
Shipping dimensions:34.1 x 28.9 x 24.6 inches (W x H x D)
Shipping weight:116.8 pounds
In the box:TV, remote control, remote batteries, user's manual
