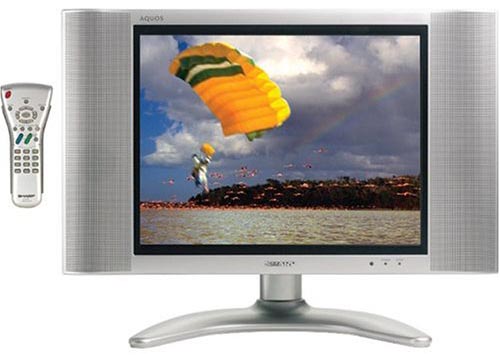

Sharp LC-13B4US 13" AQUOS LCD TV

User Manual

Sorry, we do not currently have a manual available for this item.
Request a manual | Submit a manual


Sharp LC-13B4US


Screen size:13 inches
TV type:Active-matrix TFT LCD
HDTV capable:Yes (EDTV, up to 480p resolution)
Aspect ratio:4:3
Speaker wattage per channel:2.1
Number of speakers:2
Includes radio:No
Comb filter:No
Line doubling:No
Signal type:NTSC, PAL, SECAM
Tuner type:Electronic PLL (phase-locked loop)
Picture-in-picture (PIP):No
Remote control:Yes
Parental controls:Yes (V-Chip)
VGA/SVGA input:No
Video inputs:3
Component video:1
Composite video:1
Monitor:Yes (includes NTSC tuner but requires a composite-video, S-video, or component-video signal feed--no antenna input)
Pixels:480 x 640 x R/G/B=VGA
Contrast ratio:500:1
Brightness:430 cd/m2
Horizontal viewing angle:170 degrees
Vertical viewing angle:170 degrees
Lamp life:60,000 hours
Color temperature:8,000 degrees K
Color temperature control:No
Front AV jacks:No
Power consumption:33.5 watts
Length: 6.2 inches (withstand), 2.3 inches (without stand)
Width: 13.26 inches
Height: 12.6 inches
Weight: 8.9 lbs. (with stand), 8.2 lbs. (without stand)
