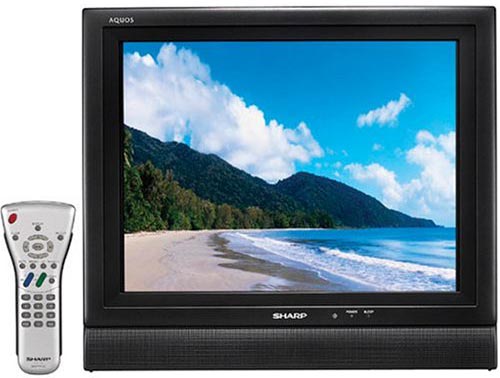

Sharp LC-13E1U 13" AQUOS LCD TV

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

Sharp LC-13E1U

Specifications

Screen size:13 inches
TV type:LCD (Advanced Super-View TFT)
HDTV capable:No
Aspect ratio:4:3
Speaker wattage per channel:2.5
Number of speakers:2
Comb filter:No
Line doubling:No
Signal type:NTSC, PAL, SECAM
Multilingual menu:Yes (English, French, Spanish)
Picture-in-picture (PIP):No
Remote control:No
Surround sound:No
VGA/SVGA input:No
Audio outputs:0
Component video:1
Composite video:1
S-video:1
RF:0
Monitor:No (includes 181-channel NTSC tuner)
Pixels:640 x 480 (VGA)
Contrast ratio:500:1
Brightness:430 cd/m2
Horizontal viewing angle:170 degrees
Vertical viewing angle:170 degrees
Lamp life:60,000 hours
Color temperature control:No
Front AV jacks:No
Sound leveler system:No
Item length:2.3 inches (without stand)
Item width:13.3 inches
Item height:12.3 inches (with stand)
Item weight:8.2 pounds

Note: This model is basically the same as the LC-13E1UB and LC-13E1US
