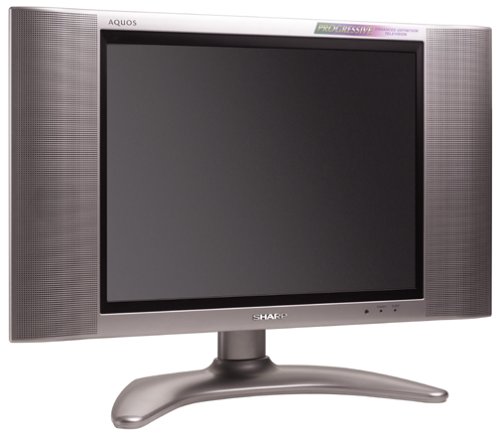

Sharp LC-15B4US


Screen size: 15 inches
TV type: Active-matrix TFT LCD
HDTV capable: Yes (EDTV, up to 480p resolution)
Aspect ratio: 4:3
Speaker wattage per channel: 2.1
Number of speakers: 2
Includes radio: No
Comb filter: No
Line doubling: No
Signal type: NTSC, PAL, SECAM
Tuner type: Electronic PLL (phase-locked loop)
Picture-in-picture (PIP): No
Remote control: Yes
SAP: Yes
Parental controls: Yes (V-Chip)
VGA/SVGA input: No
Video inputs: 3
Component video: 1
Composite video: 1
S-video: 1
RF: 0
Monitor: Yes (includes NTSC tuner but requires a composite-video, S-video, or component-video signal feed--no antenna input)
Pixels: 480 x 640 x R/G/B=VGA
Contrast ratio: 500:1
Brightness: 430 cd/m2
Horizontal viewing angle: 170 degrees
Vertical viewing angle: 170 degrees
Lamp life: 60,000 hours
Color temperature: 8,000 degrees K
Color temperature control: No
Front AV jacks: No
Wall-mountable: Yes
Power consumption: 42 watts
Length: 7.8 inches (withstand), 2.5 inches (without stand)
Width: 19.06 inches
Height: 11.9 inches (without stand), 15.03 inches (with stand)
Weight: 11.5 lbs. (with stand), 9.7 lbs. (without stand)
