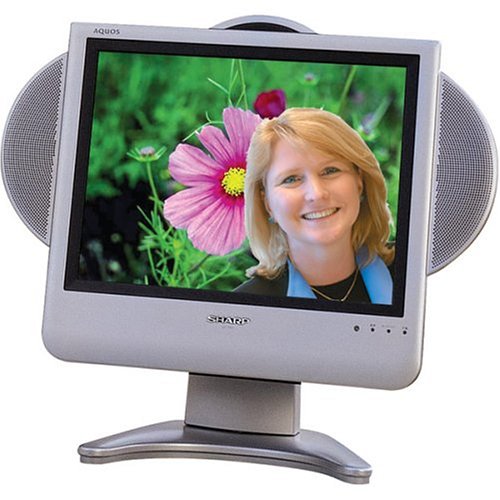

Sharp LC-15L1US 15" AQUOS LCD TV

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

Sharp LC 15L1US

Specifications

Screen size: 15 inches
TV type: Active-matrix LCD with ASV (Advanced Super View) panel and Black TFT low-reflection coating
HDTV capable: No
Aspect ratio: 4:3
Speaker wattage per channel: 2.1
Number of speakers: 2 (1.58 inches each)
Includes radio: No
Wireless standard: 802.11b
Wireless frequency: 2.4 GHz
Transmission range: 50 feet
Comb filter: Yes (3-line Y/C)
Line doubling: No
Noise reduction: No
Signal type: NTSC
Auto channel setup: Yes (through EZ Setup)
Auto clock set: Yes (through EZ Setup)
Channel labeling: No
Input labeling: No
Closed captioning: Yes
Mute: Yes
Multilingual menu: English, Spanish, French
Parental control: Yes (V-Chip)
Picture-in-picture (PIP): No
Remote control: Yes
SAP: Yes
Sleep timer: Yes (30, 60, 90, and 120 minutes)
Audio tone controls: No
Surround sound: No
VGA/SVGA input: 0
Audio outputs: A/V center
Audio inputs: A/V center
Video outputs: A/V center
Video inputs: 7
Headphone jack: Yes (.125-inch)
Digital video input: 0
Component video: 0
Composite video: A/V center
S-video: A/V center
RF: A/V center
Monitor: No (includes electronic PLL NTSC tuner)
Pixels: 480 x 640 (VGA)
Contrast ratio: 500:1
Brightness: 430 cd/m2
Dot pitch: Information not available
Horizontal viewing angle: 170 degrees
Vertical viewing angle: 170 degrees
Response time: Information not available
Image inverter: Yes (allows you to invert the image upside-down or "mirror" image if you need to hang it in an unconventional manner)
Lamp life: 60,000 hours
Color temperature control: No
Front A/V jacks: No
Sound leveler system: No
Wall mountable: No
Power supply: AC 120V, 60 Hz or DC (through supplied battery)
Power consumption: TV
Battery: Rechargeable
Battery life: About 3 hours
Battery capacity: 5,700 mAh
Battery operating conditions: 50 to 86 degrees F (10 to 30 degrees C)
Supplied accessory: Wireless A/V center, which lets you connect all your video sources (TV, DVD, VCR) and transmits signals wirelessly to the AQUOS TV, up to 50 feet away, anywhere in the home
In the box: TV, TV battery, docking station, table stand, 2 clamps, 3 fastening screws, a wireless A/V center, wireless center stand, remote control, remote battery, remote holder, a video controller, 2 antenna cables, a connection chart, a user's manual, 2 AC power adapters, a registration card, and a caution sheet
