Sharp LC-20B6US

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

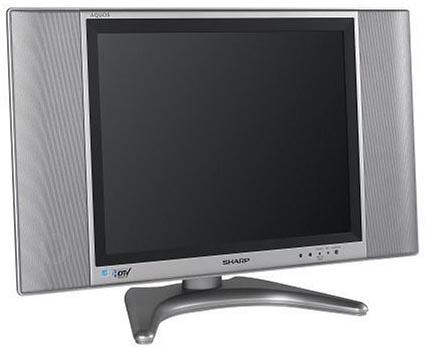

Sharp LC 20B6US

Specifications

Screen size: 20 inches
TV type: Active-matrix (a-si TFT) Advanced Super View LCD
HDTV capable: Yes
Aspect ratio: 4:3
3:2 pulldown detection: No
Speaker wattage per channel: 2.1 watts x 2
Number of speakers: 2 (5.7 cm diameter each)
Includes radio: No
Signal type: NTSC/PAL/SECAM; decoded ATSC (480, 720p)
Multilingual menu: English, Spanish, or French
Parental control: V-Chip
Picture-in-picture (PIP): No
VGA/SVGA input: 1 (D-Sub 15-pin)
Audio outputs: 0
Audio inputs: 4 stereo analog (left/right) RCA (1 of which is switchable as output)
Video outputs: 0
Video inputs: 7
Headphone jack: Yes (.125-inch, from front panel)
Digital video input: 0
Component video: 2 (HD)
Composite video: 2
S-video: 1
RF: 1
Monitor: No (includes electronic PLL NTSC/PAL tuner)
Pixels: 1,024 x 768
Contrast ratio: 500:1
Brightness: 430 cd/m2
Horizontal viewing angle: 170 degrees
Vertical viewing angle: 170 degrees
Lamp life: 60,000 hours
Color temperature control: No
Front AV jacks: No
Side AV jacks: No
Sound leveler system: No
Wall mountable: Yes
Power consumption: 81 watts
Energy Star compliant: Yes
UPC: 074000362291
Width: 26.6 inches
Height: 17.78 inches (with stand), 15.49 inches (without stand)
Depth: 9.59 inches (with stand), 2.91 inches (without stand)
Weight: 19 pounds (with stand), 16.1 pounds (without stand)
In the box: TV, table stand, remote control, remote batteries, 1 RF coaxial audio/video cable, an AC power cord, an AC power adapter, 2 cable clamps, a user's manual, and warranty/registration information
