Sharp LC-22SV6U

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

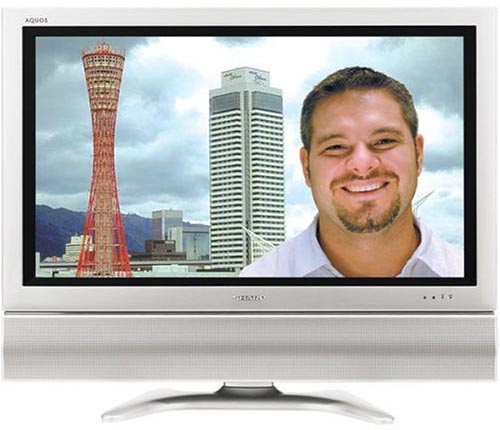

Sharp LC-22SV6U

Specifications

Screen size: 22 inches
TV type: Active-matrix (a-si TFT) Advanced Super View LCD
HDTV capable: Yes (EDTV, to 480p)
Aspect ratio: 16:9
3:2 pulldown detection: No
Speaker wattage per channel: 5 watts x 2 (with 1-bit digital amplifier and clip-type high-level speaker outputs for use with optional external speakers)
Number of speakers: 2 built-in (2-way speakers with 2.4-inch woofer and 1-inch tweeter)
Includes radio: No
Comb filter: No
Line doubling: No
Noise reduction: No
Signal type: NTSC/PAL/SECAM
Black-level expansion: No
Picture enhancements: Cool-climate settings (improves screen performance in environments below 59 degrees F), picture inversion
Picture modes: Sidebar, Smart Stretch, Stretch, Zoom; Dynamic, Standard, Movie, Game
Image freeze: Yes
Auto channel setup: Yes
Auto clock setting: Yes
Favorite channel: Yes
Channel labeling: No
Input labeling: No
Direct input selection: No
Closed captioning: Yes
Mute: Yes
Last-channel recall: Yes
Multilingual menu: English, Spanish, or French
Parental control: V-Chip
Picture-in-picture (PIP): No
Remote control: Yes
SAP: Yes
Sleep timer: Yes (30, 60, 90, or 120 minutes)
Audio-only mode: Yes (turns off screen)
Audio tone controls: Treble, bass
Audio balance: Yes
Surround sound: Virtual Dolby Surround (simulated surround sound from any 2 speakers)
VGA/SVGA input: 0
Audio outputs: 1 stereo analog (left/right) RCA (switchable as an input)
Audio inputs: 4 stereo analog (left/right) RCA (1 of which is switchable as output)
Video outputs: 1 (composite-video, switchable as an input)
Video inputs: 5
Headphone jack: Yes (.125-inch, from front panel)
Digital video input: 0
Component video: 1
Composite video: 3 (1 of which is switchable as an output)
S-video: 1
RF: 1
Monitor: No (includes electronic PLL NTSC tuner)
Pixels: 854 x 480
Contrast ratio: 500:1
Brightness: 430 cd/m2
Horizontal viewing angle: 170 degrees
Vertical viewing angle: 170 degrees
Lamp life: 60,000 hours
Color temperature control: No (fixed at 8,000 degrees K)
Front AV jacks: No
Side AV jacks: Yes
Sound leveler system: No
Wall mountable: Yes
Power supply: DC 13 V, AC 110 to 240 V, 50/60 Hz
Power consumption: 69 watts (standby)
Energy Star compliant: Yes
Width: 22.91 inches
Height: 20.08 inches (with stand), 18.19 inches (without stand)
Depth: 9.84 inches (with stand), 3.31 inches (without stand)
Weight: 22 pounds (with stand), 18.5 pounds (without stand)
In the box: TV, table stand, remote control, remote batteries, 1 RF coaxial audio/video cable, an AC power cord, an AC power adapter, 2 cable clamps, a user's manual, and warranty/registration information
