Sharp LC-37GD4U

User Manual

Sorry, we do not currently have a manual available for this item.
Request a manual | Submit a manual

Features

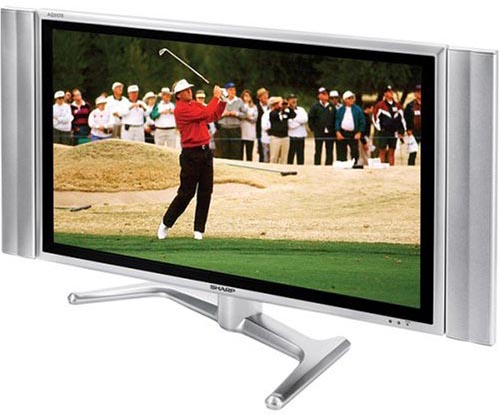

Sharp LC-37GD4U

Specifications

Screen size: 37 inches
TV type: Active Matrix (a-si TFT) Advanced Super View LCD
HDTV capable: Yes (up to 720p resolution)
Aspect ratio: 16:9
Speaker wattage per channel: 10
Number of speakers: 2 (detachable)
PC Card slot: Yes (PCMCIA)
CableCARD slot: Yes (68-pin PCMCIA)
Includes radio: No
Comb filter: No
Line doubling: No
Video circuit: Sharp Quick Shoot (fast response time)
Signal type: NTSC, ATSC (480p, 720p, 1080i scaled for 768 viewing)
Video modes: Sidebar, Smart Stretch, Stretch, Zoom, Dot by Dot (for PC), normal (for PC)
Picture-in-picture (PIP): No
Screen protection: Information not available
VGA/SVGA input: 0
Audio outputs: 1 stereo analog (left/right) RCA, 1 minijack .125-inch stereo (left/right)
Audio inputs: 3 stereo analog (left/right) RCA, 1 monaural center-channel RCA input
Video outputs: 2 (1 S-video, 1 RF)
Video inputs: 9
Headphone jack: No
Digital-video input: 2 (1 DVI-I, 1 HDMI)
Component video: 2 (HD)
Composite video: 3
S-video: 1
RF: 1
Monitor: No (includes NTSC and ATSC tuners)
Pixels: 1,366 x 768 (Wide XGA)
Contrast ratio: 800:1
Brightness: 450 cd/m2
Horizontal viewing angle: 170 degrees
Vertical viewing angle: 170 degrees
Response time: Less than 16 ms
Backlight: Fluorescent lamp (Cold Cathode Type)
Lamp life: 60,000 hours
Color temperature control: Yes (selectable)
Front AV jacks: No
Sound leveler system: No
Wall mountable: Yes
Optional accessory: Wall Mount Brackets
Power consumption: 224 watts
Energy Star-compliant: Yes
UPC: 074000362482
Width: 43.375 inches (36.12 inches without speakers and table stand)
Height: 25 inches (21.58 inches without speakers and table stand)
Depth: 12.08 inches (4 inches without speakers and table stand)
Weight: 60.8 pounds (40.8 pounds without speakers and table stand)
In the box: LCD TV, detachable speakers, table stand, and a user's manual
