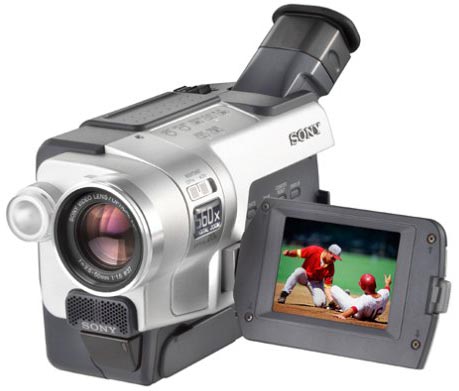

Sony CCD-TRV318

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

Sony CCD TRV318

Specifications

Video format: Hi8
CCD size: .16 inch
Maximum CCD resolution: 460,000 pixels
Video Actual: 200K Pixels
Eyepiece viewfinder: Color LCD (approx. 61,000 pixels)
LCD screen size: 2.5 inches Color (61K)
LCD swivel: Yes
Aperture: F: 1.6-2.4
Optical zoom: 20x
Digital zoom: 560x
Autolight: Built-in Light
Focal Distance: 2.5-50mm
35mm Conversion: 42-840mm
Filter Diameter: 37mm
Image stabilization: Yes
Infrared capability: NightShot
Remote included: Yes
Focusing: Full Range Auto/ Manual
Minimum Illumination: 1 Lux (0 Lux with NightShot Infrared System)
NightShot Infrared System: Yes
Shutter Speed: 1/60 - 1/4000 (AE Mode)
Viewfinder: Black and White, (90K)
Video Input/Output: No/Yes (S-Video, Mini)
Audio Input/Output: No/Yes (Mono)
Digital still capability: No
White Balance: Auto
Custom titling: Yes
Exposure: Yes, Dial (24 Step)
Power Consumption (VF/LCD/VF+LCD): 1.9W/2.6W/2.8W
Fade options: Various Fader Effects
USB streaming: No
IEEE1394 (Firewire) output: No
Battery type: InfoLithium
Included in box: AC-L15 Power Adaptor/In Camera Charger, NP-FM30 InfoLithium Rechargeable Battery, Mono A/V Cable, Lens Cap, Shoulder Strap
Dimensions (HxD): 4 inches x 7 7/8 inches
Weight: 3 5/8 inches
