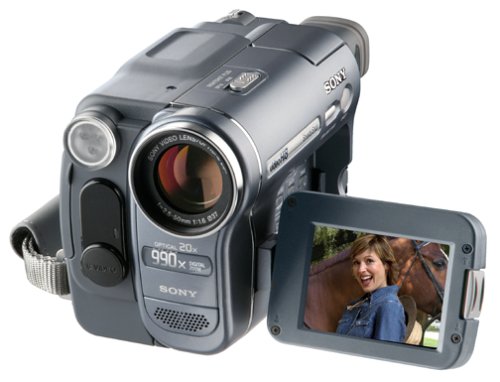

Sony CCD-TRV328

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

Sony CCD-TRV328

Specifications

Video format: Hi8
Audio: Mono
Maximum CCD resolution: 320,000
CCD size: 0.17 inches
Eyepiece viewfinder: Black & white, 90k pixels
LCD screen size: 2.5 inches
LCD swivel: Yes
Aperture: F/1.6-F2.4
Filter diameter: 37mm
Optical zoom: 20x
Digital zoom: 990x
Autolight: Yes
Hot shoe for external light: No
Image stabilization: Yes, SteadyShot
Infrared capability: Yes, NightShot
Remote included: No
Headphone jack: No
Digital still capability: No
MPEG movie mode: No
Preset titles: Yes
Custom titling: Yes
Programmed recording: Portrait, Beach & Ski, Sports Lesson, Landscape, Spotlight, Sunset & Moon
Fade options: Black, Mosaic, White, Monotone and Stripe
Special effects: Negative Art, Sepia, Monotone, Solarize, Slim, Stretch, Pastel, Mosaic, and Black & White
USB streaming: No
IEEE1394 (Firewire) output: No
USB output: No
S-Video output: Yes
Battery type: InfoLithium
Included in box: AC-L15 Power Adapter/In Camera Charger, NP-FM30 InfoLithium Rechargeable Battery, Mono A/V Cable, Lens Cap, Shoulder Strap
Dimensions (WxHxD): 3.38 inches x 3.88 inches x 6 inches
Weight: 1.94 pounds
